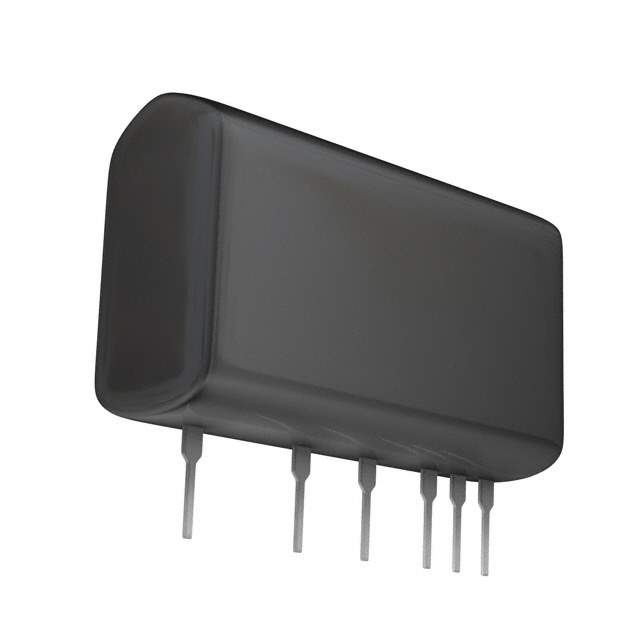

BP5063-5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Rohm Semiconductor
Standard Package 180
Category Power Supplies - Board Mount
Family AC DC Converters
Series BP5063
Number of Outputs 1
Voltage - Input 80 ~ 120 VAC
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) 1W
Power Supply Type Switching (Closed Frame)
Applications ITE (Commercial)
Operating Temperature Range -25°C ~ 80°C
Efficiency 62%
Mounting Style Through Hole
Size / Dimension 1.11" L x 0.36" W x 0.70" H (28.2mm x 9.1mm x 17.9mm)
Power (Watts) - Max 1W
Line Regulation 50mV
Load Regulation 70mV
Catalog BP50xx Series
Win Source Part Number 039659-BP5063-5
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian BP5063-5 CAD Model

Description

BP5063-5 Module Description

The BP5063-5 is a versatile electronic module designed for high-efficiency power conversion applications. Its compact design and robust performance make it ideal for use in various electronic projects and devices.

Features and Benefits

  • High Efficiency: Optimized for energy-efficient operations, minimizing energy losses.
  • Compact Design: Small form factor for easy integration into diverse systems.
  • Reliable Performance: Designed with high-quality components for durable performance.
  • Wide Input Range: Capable of handling a broad spectrum of input voltages, enhancing versatility.

Applications

  • Power Supply Units
  • Embedded Systems
  • Industrial Automation
  • Consumer Electronics

This module is an excellent choice for projects requiring dependable power conversion with minimal footprint.
