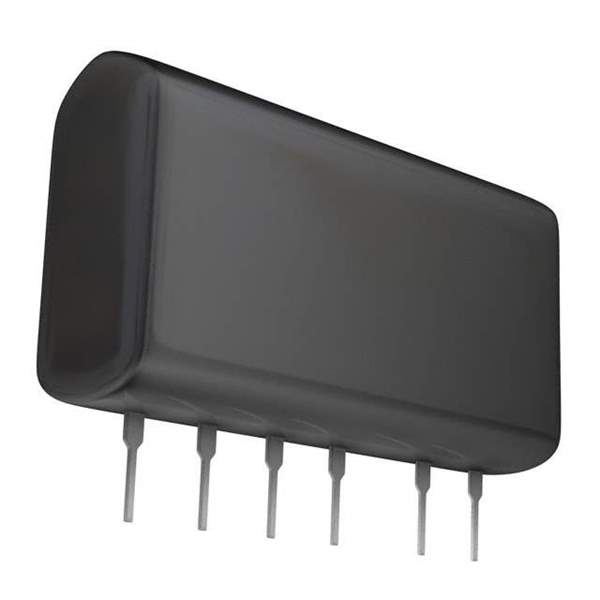

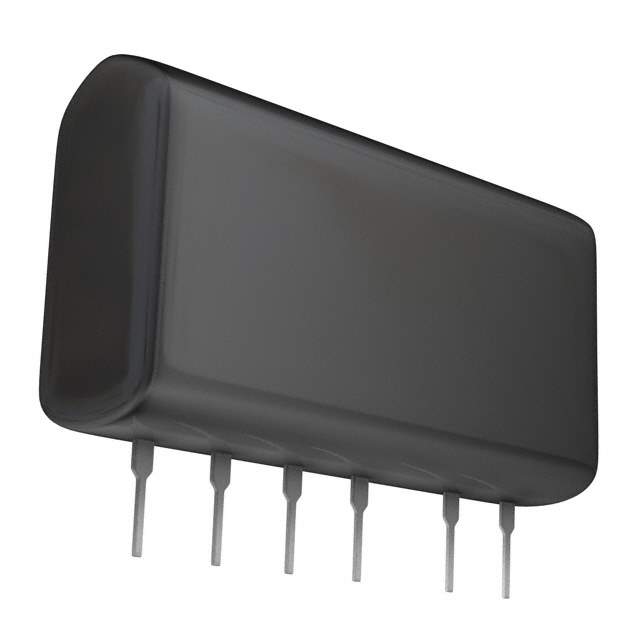

BP5061-5 Real Image
Same model may have multiple batches, images only for reference.

BP5061-5

Part No BP5061-5
Manufacturer Rohm Semiconductor
Catalog Board Mount AC DC Converters
Description IC AC/DC CONV -5V 350MA SIP12 / AC/DC CONVERTER AC100V INPUT, C100V -5V/350MA OUTPUT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Rohm Semiconductor
Series BP5061
Type Enclosed
Number of Outputs 1
Voltage - Input 80 ~ 120 VAC
Voltage - Output 1 -5V
Current - Output (Maximum) 350mA
Power (Watts) 2W
Applications ITE (Commercial)
Operating Temperature Range -25°C ~ 80°C (With Derating)
Efficiency 62.1%
Mounting Style Through Hole
Package 12-SIP Module, 6 Leads
Dimension 1.38" L x 0.36" W x 0.77" H (35.0mm x 9.1mm x 19.5mm)
Line Regulation 40mV
Load Regulation 50mV
Win Source Part Number 770258-BP5061-5
Popularity Medium
Supply and Demand Status Balance
Quantity per package 100
Family Name BP5061
Introduction Date January 25, 2001
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian BP5061-5 CAD Model

Description

The Rohm Semiconductor BP5061-5 is an enclosed type power supply module with a mounting style of through hole.

  • Operating Temperature Range: -25°C to 80°C (with derating)
  • Package: 12-SIP module with 6 leads
  • Power: 2W
  • Voltage Input: 80~120 VAC
  • Output Voltage: -5V
  • Efficiency: 62.1%
  • Line Regulation: 40mV
  • Load Regulation: 50mV
  • Current Output: 350mA
  • Approvals: ITE (Commercial)
  • Series: BP5061
  • Dimension: 1.38" L x 0.36" W x 0.77" H (35.0mm x 9.1mm x 19.5mm)
  • Supply and Demand Status: Balanced
  • Packaging: 100
