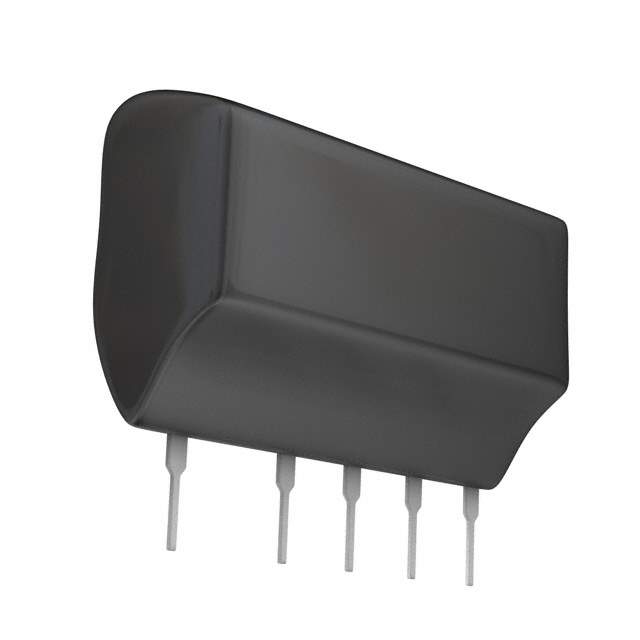

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Rohm Semiconductor
Series BP5045
Type Enclosed
Number of Outputs 1
Voltage - Input 80 ~ 276 VAC
Voltage - Output 1 -12.2V
Current - Output (Maximum) 200mA
Power (Watts) 2W
Applications ITE (Commercial)
Operating Temperature Range -20°C ~ 80°C (With Derating)
Efficiency 75%
Mounting Style Through Hole
Package 10-SIP Module, 5 Leads
Size 1.11" L x 0.40" W x 0.70" H (28.2mm x 10.1mm x 17.9mm)
Line Regulation 70mV
Load Regulation 100mV
Win Source Part Number 1153935-BP5045A
Manufacturer Homepage www.rohm.com
Popularity Medium
Supply and Demand Status Limited
Family Name BP5045
Introduction Date February 13, 2004
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian BP5045A CAD Model

Description

The BP5045A is a power supply device manufactured by Rohm Semiconductor.

  • Series: BP5045
  • Enclosure: Enclosed
  • Mounting Style: Through Hole
  • Operating Temperature: -20°C to 80°C (with derating)
  • Package: 10-SIP Module, 5 Leads
  • Approvals: No Approvals
  • Application: ITE (Commercial)
  • Power: 2W
  • Voltage Input: 80~276 VAC
  • Size: 1.11" L x 0.40" W x 0.70" H (28.2mm x 10.1mm x 17.9mm)
  • Weight: -
  • Number of Outputs: 1
  • Voltage Output 1: -12.2V
  • Efficiency: 75%
  • Line Regulation: 70mV
  • Load Regulation: 100mV
  • Maximum Output Current: 200mA
  • Supply and Demand Status: Limited
  • Alternative Parts: NCP1001PG, VIPer22AS - E, and VIPER22ASTR-E
  • Introduction Date: February 13, 2004
  • Estimated EOL Date: Obsolete
