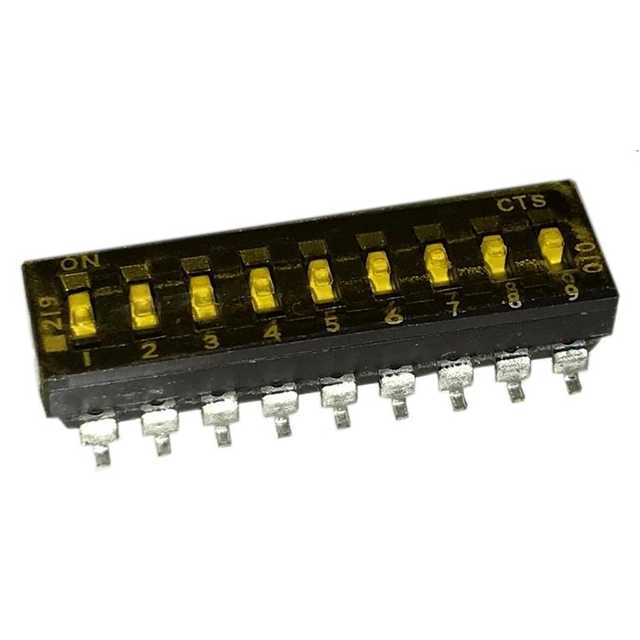

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr CTS Electrocomponents
Series 219
Package Tube
Circuit SPST
Number of Positions 9
Current Rating (Amps) 100mA
Voltage Rating 20VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.160" (4.06mm)
Mounting Type Surface Mount
Termination Style Gull Wing
Pitch 0.100" (2.54mm) , Full
Washable Yes
Features Epoxy Sealed Terminals, Tape Seal
Temperature Range - Operating -55°C ~ 85°C
Length 0.958" (24.33mm)
Electrical Life 2,000 Cycles
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
California Prop 65 Warning Information
Win Source Part Number 1349613-219-9LPST
Ultra Librarian 3D Model Ultra Librarian 219-9LPST CAD Model

Description

The CTS Electrocomponents DIP Switch 219-9LPST is a high-quality electronic component designed for use in switches. Bold the product name (e.g., BAV99S,135 → 219-9LPST) and manufacturer (e.g., Nexperia USA Inc. → CTS Electrocomponents).

  • Number of Positions: 9
  • Pitch: 0.100" (2.54mm), Full
  • Termination Style: Gull Wing
  • Features: Epoxy Sealed Terminals, Tape Seal
  • Contact Finish: Gold
  • Contact Material: Beryllium Copper
  • Voltage Rating: 20VDC
  • Operating Temperature Range: -55°C ~ 85°C
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.50.9065
  • Height Above Board: 0.160" (4.06mm)
  • Length: 0.958" (24.33mm)
  • Packaging: Tube
