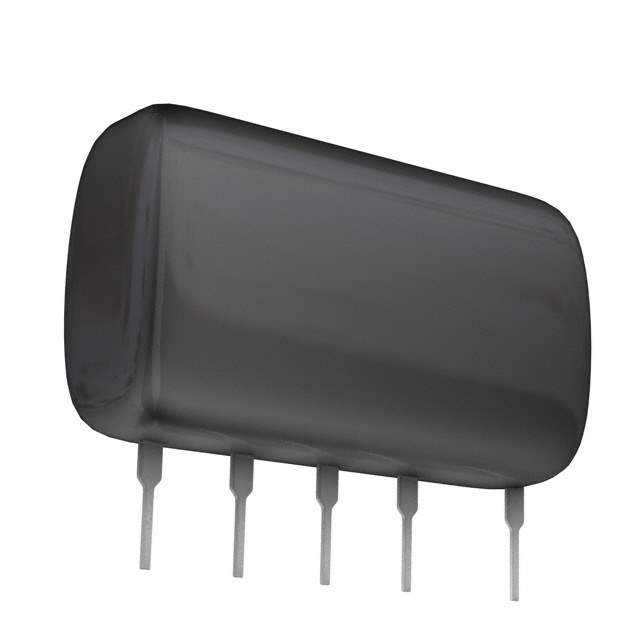

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Rohm Semiconductor
Series BP5037
Type Enclosed
Number of Outputs 1
Voltage - Input 80 ~ 120 VAC
Voltage - Output 1 15V
Current - Output (Maximum) 170mA
Power (Watts) 3W
Applications ITE (Commercial)
Operating Temperature Range -25°C ~ 80°C (With Derating)
Efficiency 78%
Mounting Style Through Hole
Package 10-SIP Module, 5 Leads
Size 1.11" L x 0.35" W x 0.66" H (28.2mm x 9.0mm x 16.8mm)
Line Regulation 50mV
Load Regulation 70mV
Win Source Part Number 1153931-BP5037B15
Manufacturer Homepage www.rohm.com
Popularity Medium
Supply and Demand Status Limited
Family Name BP5037
Ultra Librarian 3D Model Ultra Librarian BP5037B15 CAD Model

Description

The BP5037B15 is an enclosed power supply module designed and manufactured by Rohm Semiconductor.

  • Power: 3W
  • Efficiency: 78%
  • Input Voltage: 80 ~ 120 VAC
  • Output Voltage: 15V
  • Series: BP5037
  • Application: ITE (Commercial)
  • Size: 1.11" L x 0.35" W x 0.66" H (28.2mm x 9.0mm x 16.8mm)
  • Weight: -
  • Line Regulation: 50mV
  • Load Regulation: 70mV
  • Mounting Style: Through-hole
  • Package: 10-SIP Module, 5 Leads
  • Supply and Demand: Limited
