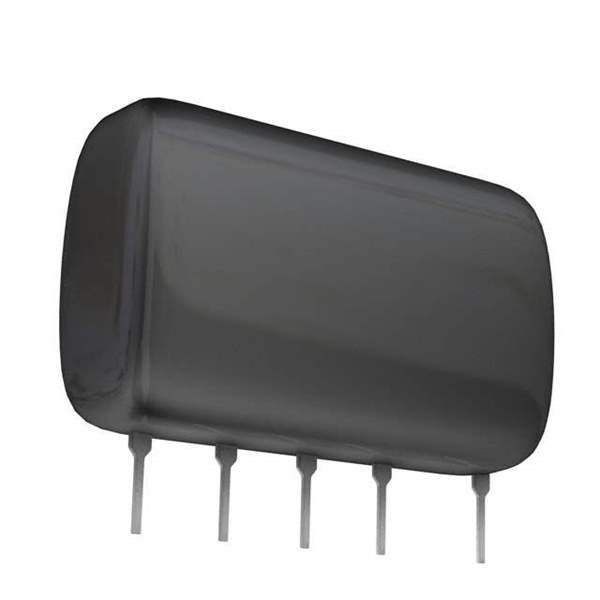

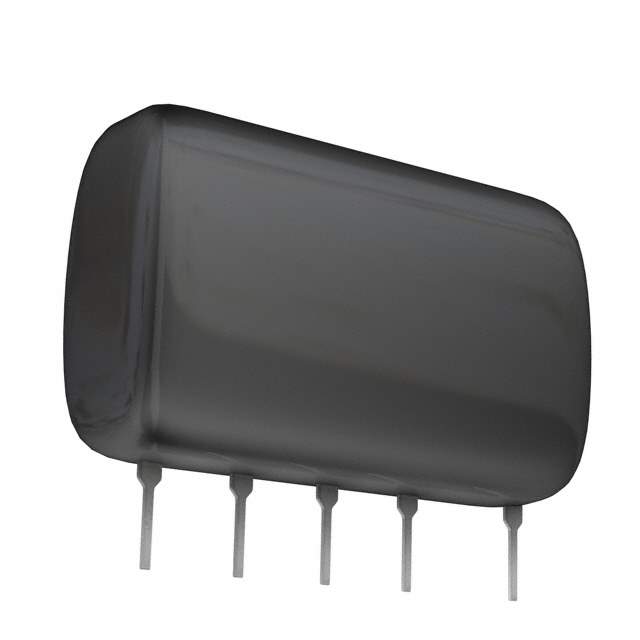

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Rohm Semiconductor
Series BP5035
Type Enclosed
Number of Outputs 1
Voltage - Input 80 ~ 120 VAC
Voltage - Output 1 -12V
Current - Output (Maximum) 200mA
Power (Watts) 2W
Applications ITE (Commercial)
Operating Temperature Range -25°C ~ 80°C (With Derating)
Efficiency 74%
Mounting Style Through Hole
Package 10-SIP Module, 5 Leads
Size 1.11" L x 0.36" W x 0.70" H (28.2mm x 9.1mm x 17.9mm)
Line Regulation 40mV
Load Regulation 50mV
Win Source Part Number 1153930-BP5035A12
Manufacturer Homepage www.rohm.com
Popularity Medium
Supply and Demand Status Limited
Family Name BP5035A12
Introduction Date January 23, 2002
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian BP5035A12 CAD Model

Description

The Rohm Semiconductor BP5035A12 is a 2W enclosed power supply module with 5 leads.

  • Manufacturer: Rohm Semiconductor
  • Power: 2W
  • Leads: 5
  • Voltage Input Range: 80-120 VAC
  • Operating Temperature Range: -25°C to 80°C with derating
  • Application: ITE (Commercial)
  • Line Regulation: 40mV
  • Load Regulation: 50mV
  • Efficiency: 74%
  • Size: 1.11" L x 0.36" W x 0.70" H (28.2mm x 9.1mm x 17.9mm)
  • Output Voltage: -12V
  • Maximum Output Current: 200mA
  • Status: Obsolete
