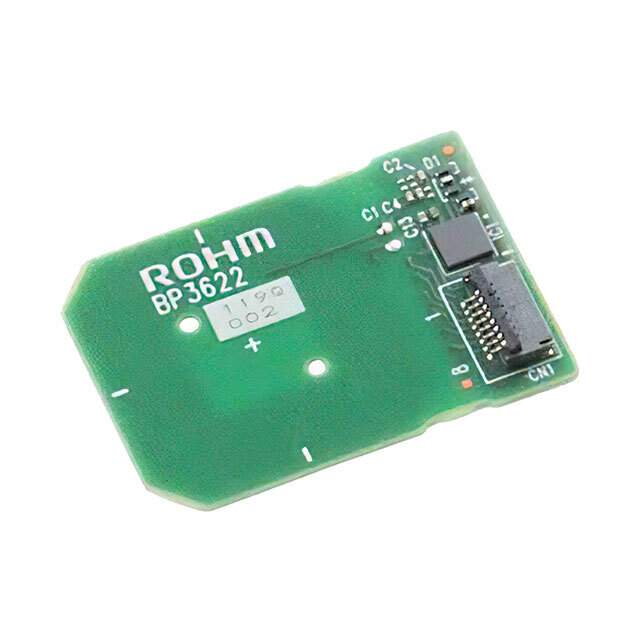

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver Modules and Modems
Mfr Rohm Semiconductor
Package Tray
RF Family/Standard General ISM < 1GHz
Frequency 13.56MHz
Data Rate 212kbps
Antenna Type Integrated, Chip
Voltage - Supply 4.5V ~ 5.5V
Mounting SMD (SMT)
Temperature Range - Operating -10°C ~ 50°C
Package / Case Module
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 846-BP3622
Standard Package 10
Win Source Part Number 1158691-BP3622
Ultra Librarian 3D Model Ultra Librarian BP3622 CAD Model

Description

The Rohm Semiconductor 1158691-BP3622 is an RF transceiver module and modem electronic component with a frequency of 13.56MHz.

  • Frequency: 13.56MHz
  • Protocol: -
  • Data Rate: 212kbps
  • Mounting: SMD (SMT)
  • Voltage Supply: 4.5V ~ 5.5V
  • Operating Temperature Range: -10°C ~ 50°C
