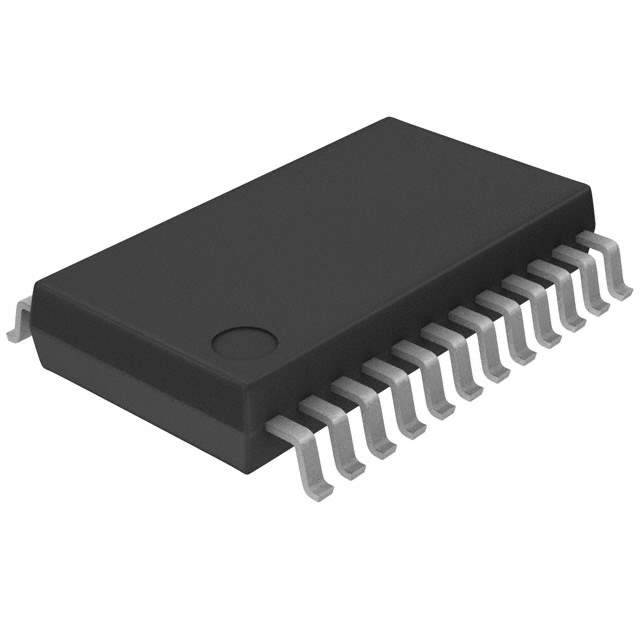

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Not For New Designs
Frequency 70MHz to 120MHz
Applications Wireless Audio Link LSI
Modulation or Protocol FM
Power - Output -7dBm
Current - Transmitting 28mA
Data Interface PCB, Surface Mount
Antenna Connector PCB, Surface Mount
Supply Voltage - Operating 4 V to 6 V
Temperature Range - Operating -40°C to 85°C
Dimension 24-LSSOP (0.220", 5.60mm Width)
Win Source Part Number 049530-BH1415FV-E2
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian BH1415FV-E2 CAD Model

Description

BH1415FV-E2 Product Description

The BH1415FV-E2 is an advanced FM stereo transmitter IC designed to provide high-quality sound transmission. Ideal for various audio broadcasting applications, this device is compact yet powerfully supports clear stereo transmission.

  • Applications:
    • Car FM transmitters
    • Wireless audio systems
    • Home audio transmitters
  • Features and Benefits:
    • Operates at a wide range of frequencies, ensuring compatibility with numerous devices.
    • Built-in PLL circuitry for stable signal transmission.
    • High signal-to-noise ratio for clear audio output.
    • Low power consumption, enhancing power efficiency.
  • Additional Details:
    • Package Type: SSOP-B28
    • Supply Voltage: 3V to 3.6V
    • Operating temperature range: -40°C to +85°C
