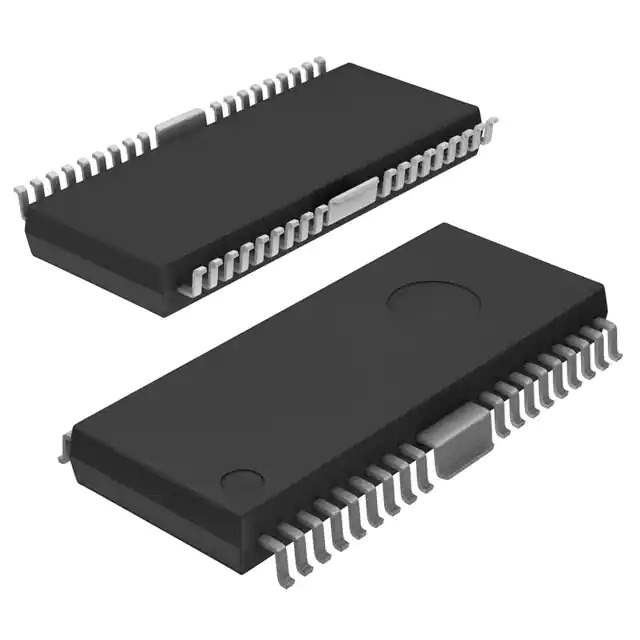

BD6941FM-E2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Motor Drivers, Controllers
Mfr Rohm Semiconductor
Package Tape & Reel
Product Status Not For New Designs
Motor Type - AC, DC Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (2)
Interface Parallel
Technology Power MOSFET
Applications Automotive
Current - Output 1.25A
Voltage - Supply 8V ~ 16V
Voltage - Load 8V ~ 16V
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 36-SOP (0.295", 7.50mm Width) + 2 Heat Tabs
Supplier Device Package 36-HSOP-M
Base Product Number BD6941
Standard Package 1,500 pcs
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 570154-BD6941FM-E2
Ultra Librarian 3D Model Ultra Librarian BD6941FM-E2 CAD Model

Description

The 570154-BD6941FM-E2 is a motor driver integrated circuit (IC) used in power management applications, specifically in automotive systems.

  • Category: Motor Drivers, Controllers
  • Application: Power Management, Automotive
  • Motor Type: Brushed DC Motors
  • Current Output: Up to 1.25A
  • Integration: Fully Integrated Driver with Control and Power Stages
  • Interface: Parallel
  • Output Configuration: Half Bridge (2 Outputs)
  • Voltage Load Range: 8V to 16V
  • Package: 36-SOP with 2 Heat Tabs
  • Supplier Device Package: 36-HSOP-M
  • Operating Temperature: -40°C to 150°C
  • Manufacturer: Rohm Semiconductor
  • Design Status: Not Intended for New Designs
