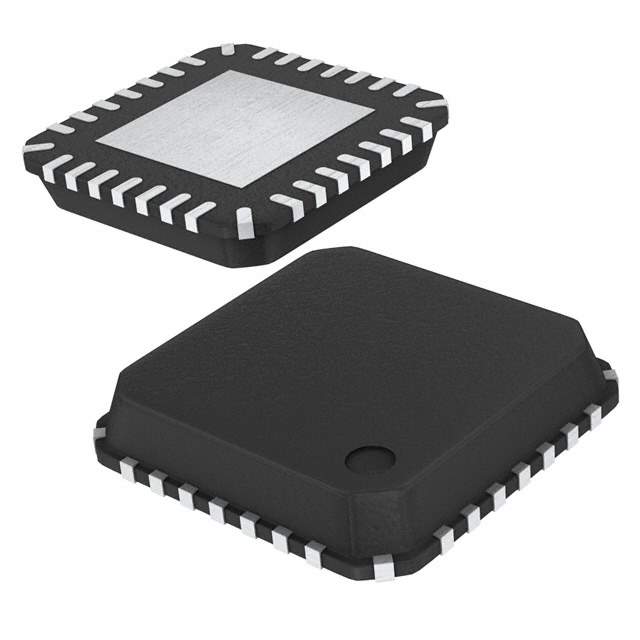

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Type DC DC Controller
Topology Step-Up (Boost)
Number of Outputs 4
Operating Input Voltage(Min) 2.7V
Maximum Supply Voltage 22V
Output Voltage 40.5V
Channel Output Current 30mA
Frequency 1MHz
Dimming PWM
Applications Backlight
Temperature Range - Operating -30°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 28-HQFN
Win Source Part Number 1023013-BD6066EKN-E2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BD6066EKN-E2 CAD Model

Description

The Rohm Semiconductor BD6066EKN-E2 is a DC DC controller with a step-up (boost) topology.

  • Outputs: Four
  • Application: Backlight
  • Frequency: 1MHz
  • Dimming: PWM
  • Output Voltage: 40.5V
  • Maximum Supply Voltage: 22V
  • Operating Input Voltage: 2.7V to 40.5V
  • Channel Output Current: 30mA
