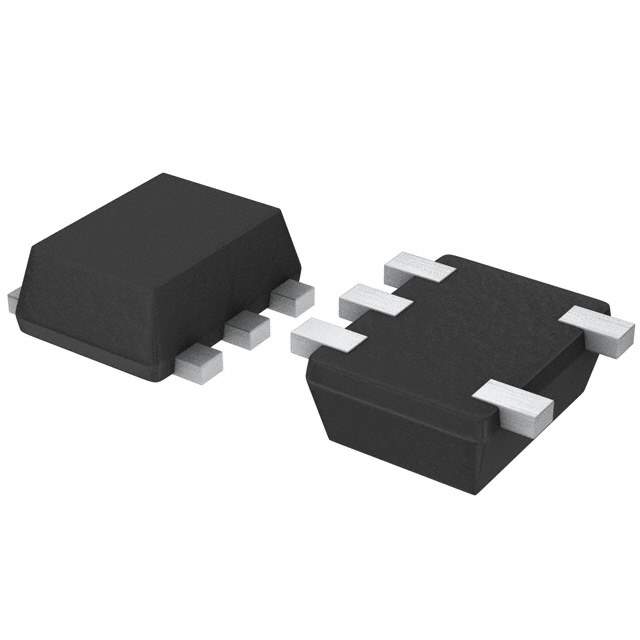

The BD4836FVE is a voltage detector IC manufactured by Rohm Semiconductor, designed for power management and system supervision. This IC is designed to monitor voltage levels and assert a reset signal to a microcontroller or other system components when the voltage drops below a specified threshold.

Applications

• Microcontroller Reset Circuits: Ensures a proper reset of microcontrollers upon power-up or during brownout conditions.
• CPU Reset Circuits: Provides a reset signal to CPUs in embedded systems, guaranteeing a clean start.
• Power Supply Monitoring: Monitors the output voltage of power supplies, triggering a reset if it falls outside the specified range.
• Battery-Powered Devices: Protects battery-powered devices by preventing operation at critically low voltage levels, preserving battery life and data integrity.
• Industrial Control Systems: Monitors critical voltage rails in industrial equipment to ensure reliable operation.

Features

• Accurate Detection Voltage: Provides precise voltage detection with a tight tolerance.
• Open Drain Output: Offers flexibility in interfacing with different logic levels and system configurations.
• Low Current Consumption: Minimizes power consumption, making it suitable for battery-powered applications.
• Small Package: The compact package saves valuable board space.
• Hysteresis: Prevents spurious resets due to voltage fluctuations near the threshold.

Benefits

• Improved System Stability: Enhances system stability by preventing erratic behavior caused by voltage drops.
• Enhanced System Reliability: Increases overall system reliability by protecting against undervoltage-related issues.
• Simplified Design: Simplifies the design of reset circuits.
• Cost-Effective Solution: Offers a cost-effective means of monitoring voltage levels and ensuring proper system operation.
• Data Protection: Prevents data corruption by resetting the system before the voltage becomes too low for reliable operation.

Additional Details

The BD4836FVE typically requires an external pull-up resistor connected to its open-drain output. The detection voltage is factory-set and should be chosen based on the voltage requirements of the protected system. Refer to the product datasheet for comprehensive electrical characteristics, timing diagrams, and example application circuits.
