The BA10358FV is a dual operational amplifier (op-amp) from Rohm Semiconductor, designed for a wide range of applications requiring stable and reliable amplification. This op-amp is known for its low power consumption, making it suitable for battery-powered devices and energy-efficient designs.

Applications:

• Audio amplification
• Signal conditioning
• Active filters
• Instrumentation amplifiers
• Voltage followers
• Sensor amplifiers

Features:

• Dual operational amplifier
• Low supply current
• Wide operating voltage range
• High open-loop gain
• Internal frequency compensation
• Short circuit protection

Benefits:

• Reduced power consumption for longer battery life
• Stable performance over a wide voltage range
• High amplification for accurate signal processing
• Simplified circuit design with internal compensation
• Protection against output short circuits
• Reliable operation in various environments

Specifications:

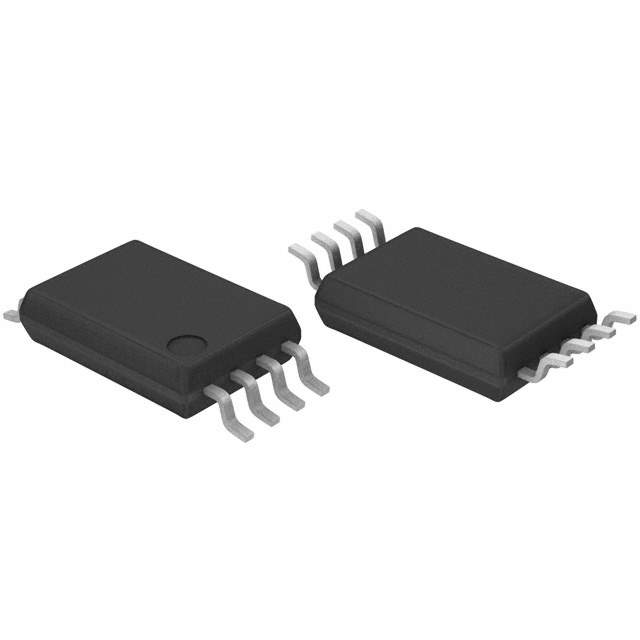

The BA10358FV operates with a supply voltage range of 3V to 32V (single supply) or ±1.5V to ±16V (dual supply). The typical supply current is around 0.7mA per amplifier. The open-loop voltage gain is typically 100dB, providing high amplification for small input signals. The input offset voltage is typically 2mV. The operating temperature range is typically -20°C to +75°C. The package is SOP-8.

The low supply current of the BA10358FV makes it ideal for portable devices and applications where power efficiency is critical. The wide operating voltage range allows it to be used in various systems without requiring extensive voltage regulation. The high open-loop gain ensures accurate amplification of input signals, making it suitable for precision applications. The internal frequency compensation simplifies circuit design by eliminating the need for external compensation components.

In audio amplification applications, the BA10358FV can be used to amplify audio signals from microphones or other audio sources, providing clear and loud output. For signal conditioning, it can be used to amplify and filter signals from sensors or other electronic devices, preparing them for further processing. In active filter designs, the op-amp can be used to create filters that selectively amplify or attenuate certain frequencies, improving signal quality. As an instrumentation amplifier, it provides high input impedance and common-mode rejection, making it suitable for measuring small differential signals in noisy environments. In voltage follower configurations, it provides a high-impedance input and a low-impedance output, buffering signals without attenuation. It can also serve as a sensor amplifier, boosting the output of low-output sensors for better signal detection.

The BA10358FV is a versatile and reliable op-amp suitable for a broad range of applications. Its low power consumption, wide operating voltage range, and high gain make it a popular choice for both portable and stationary electronic devices.
