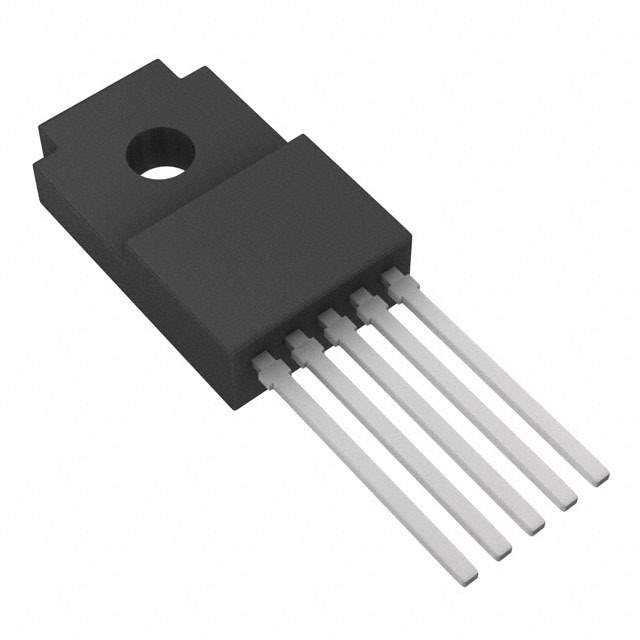

BA00BC0WT Real Image
Same model may have multiple batches, images only for reference.

BA00BC0WT

Part No BA00BC0WT
Manufacturer Rohm Semiconductor
Catalog PMIC - Voltage Regulators - Linear
Description 1A Secondary LDO Regulators for Local Power Supplies
Datasheet
BA00BC0WT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Rohm Semiconductor
Packaging Tube
Output Configuration Positive
Output Type Adjustable
Number of Regulators 1
Voltage Input MAX 16V
Output Voltage 1.5V
Output Voltage MAX 12V
Output Current 1A
Operating Supply Current 0.5mA ~ 0.9mA
PSRR 55dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Operating Temperature Range -40°C ~ 105°C
Mounting Style Through Hole
Package TO-220-5 Full Pack
Manufacturer Package TO-220FP-5
Win Source Part Number 1150974-BA00BC0WT
Manufacturer Homepage www.rohm.com
Popularity Medium
Supply and Demand Status Limited
Family Name BA00BC0
Introduction Date July 21, 2003
ECCN EAR99
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian BA00BC0WT CAD Model

Description

The Rohm Semiconductor BA00BC0WT is an adjustable output voltage regulator IC with a positive output configuration.

  • Output Voltage (Max): 12V
  • Input Voltage: Up to 16V
  • Number of Regulators: 1
  • Package: TO-220-5 Full Pack
  • Mounting Style: Through-Hole
  • Operating Temperature: -40°C to 105°C
  • Output Current: 1A
  • Operating Supply Current Range: 0.5mA to 0.9mA
  • PSRR: 55dB (120Hz)
  • Protection Features: Over-Current and Over-Temperature
  • Supply and Demand Status: Limited
