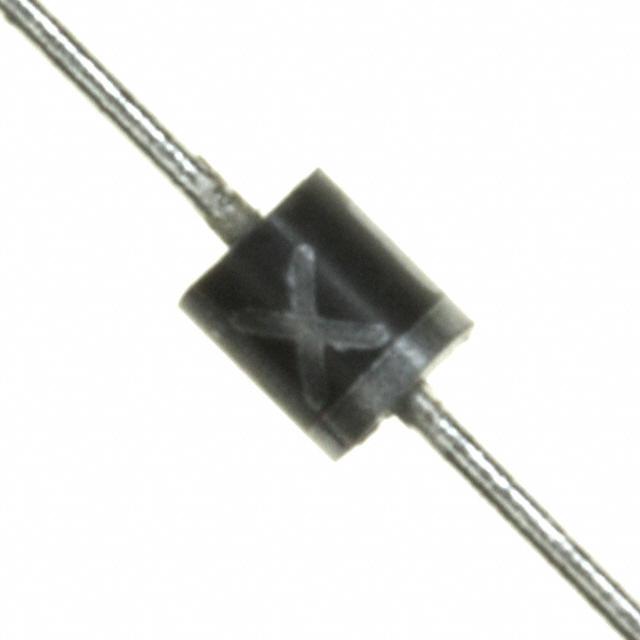

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 400V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 1A
Speed(Frequency) Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 10μA @ 400V
Mounting Through Hole
Case / Package DO-41
Operating Temperature - Junction 175°C (Max)
Win Source Part Number 053606-1N4004A
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian 1N4004A CAD Model

Description

Description

The 1N4004A is a silicon rectifier diode designed for high-performance applications, handling reverse voltages up to 400V with a forward current rating of 1A. It is optimized for environments that require stable and efficient rectification.

Features and Benefits

  • High Reverse Voltage: Designed for 400V applications.
  • Consistent Performance: Delivers consistent forward current up to 1A.
  • Reliability: Known for high-reliability performance, even in harsh conditions.
  • Easy Integration: Suitable for various electronic circuit designs.

Applications

  • Industrial equipment
  • LED lighting systems
  • Battery protection
  • Telecommunication devices

Additional Details

The 1N4004A is utilized across various industries for its superior capability to provide precise power rectification and regulation.
