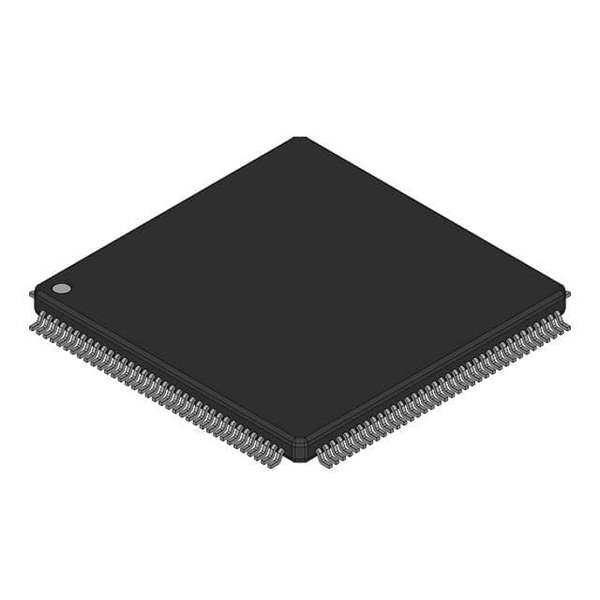

The S912ZVFP64F1VLQ is a 16-bit microcontroller from Rochester Electronics, built around the S12Z core. This microcontroller is designed for automotive and industrial applications requiring robust performance, functional safety, and efficient communication capabilities.

Applications:

• Automotive Body Control Modules: Used in systems controlling lighting, door locks, and window lifts.
• Industrial Motor Control: Suited for controlling electric motors in industrial equipment.
• Automotive Sensor Interfaces: Managing data acquisition from various sensors in vehicles.
• General-Purpose Embedded Control: Applicable in a wide range of embedded systems.

Features:

• 16-bit S12Z Core: Provides efficient processing for embedded control tasks.
• 64KB Flash Memory: Offers ample space for program storage.
• 4KB RAM: Enables sufficient data handling during operation.
• Communication Interfaces: Includes CAN, LIN, and SCI for robust network communication.
• Analog-to-Digital Converter (ADC): Allows for precise measurement of analog signals.
• Timers: Multiple timers for precise timing and control functions.
• Functional Safety Features: Incorporates features to meet safety requirements in automotive applications.

Benefits:

• Robust Performance: The 16-bit S12Z core provides reliable performance for demanding applications.
• Integrated Communication: CAN, LIN, and SCI interfaces simplify network integration.
• Functional Safety: Designed with safety features to meet automotive safety standards.
• Efficient Control: Timers and ADC enable precise control and measurement.
• Wide Operating Voltage: Suitable for automotive power environments.

Technical Specifications:

• CPU: 16-bit S12Z
• Flash Memory: 64KB
• RAM: 4KB
• Communication Interfaces: CAN, LIN, SCI
• ADC Channels: Multiple channels available
• Operating Voltage: Automotive voltage range
• Operating Temperature: Extended automotive temperature range
• Package: LQFP
