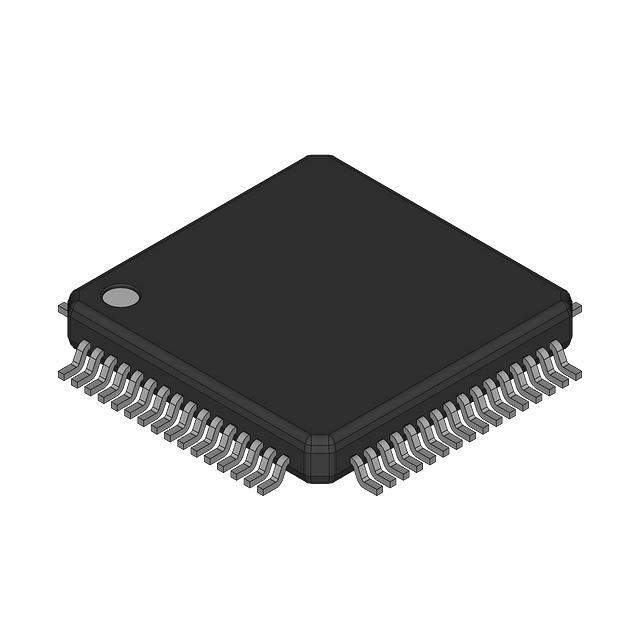

R5F2136ACNFA#V0 Real Image
Same model may have multiple batches, images only for reference.

R5F2136ACNFA#V0

Part No R5F2136ACNFA#V0
Manufacturer Rochester Electronics
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 96KB FLASH 64LQFP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features R8C series Microcontroller IC 16-Bit 20MHz 96KB (96K x 8) FLASH 64-LQFP (14x14)
Manufacturer Renesas Electronics America
Series R8C/3x/36C
Package Bulk
Core Processor R8C
Core Size 16-Bit
Speed 20MHz
Connectivity I2C, LINbus, SIO, SSU, UART/USART
Peripherals POR, PWM, Voltage Detect, WDT
Number of I/O 59
Program Memory Size 96KB (96K x 8)
Program Memory Type FLASH
EEPROM Size 4K x 8
Supply Voltage 1.8V ~ 5.5V
Data Converters A/D 12x10b; D/A 2x8b
Oscillator Type Internal
Operating Temperature Range -20°C ~ 85°C (TA)
Mounting Surface Mount
Package 64-LQFP
Case / Package 64-LQFP (14x14)
Family Name R5F2136A
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
HTSUS 8542.31.0001
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 931430-R5F2136ACNFA#V0
Ultra Librarian 3D Model Ultra Librarian R5F2136ACNFA#V0 CAD Model

Description

The Renesas Electronics America 931430-R5F2136ACNFA#V0 is a 16-bit 20MHz microcontroller IC that belongs to the R8C series.

  • Program Memory: 96KB (96K x 8) FLASH
  • EEPROM Size: 4K x 8
  • Operating Temperature: -20°C to 85°C (TA)
  • Mounting: Surface Mount
  • Package: 64-LQFP
  • Connectivity: I2C, LINbus, SIO, SSU, and UART/USART
  • Peripherals: POR, PWM, Voltage Detect, and WDT
  • I/Os: 59
  • Data Converters: A/D 12x10b and D/A 2x8b
  • Oscillator Type: Internal
  • Supply Voltage: 1.8V to 5.5V
  • Supply and Demand: Balanced
  • Quantity per Package: 1
  • MSL Level: 1 (unlimited)
  • REACH: Unaffected
