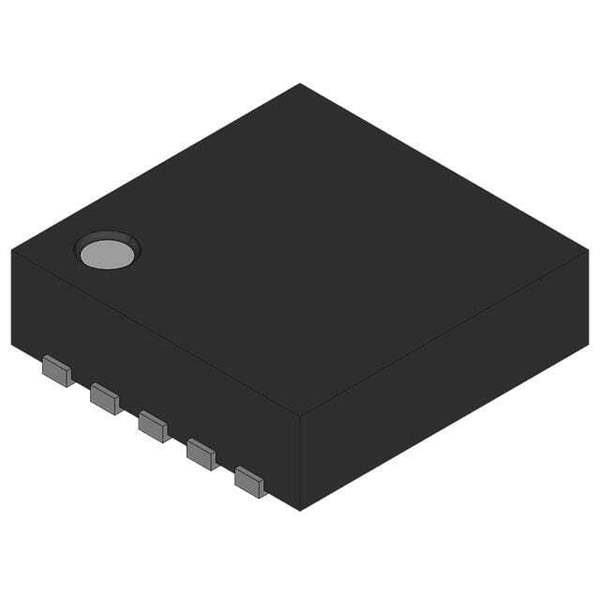

The ISL43L220IRZ from Rochester Electronics is a precision, low-voltage, low on-resistance, dual single-pole/double-throw (SPDT) analog switch designed for switching both analog and digital signals. It operates from a single +1.65V to +3.6V supply. This switch is ideal for applications requiring high performance and low power consumption. It features a break-before-make switching action, preventing momentary shorting when switching between channels.

Applications

• Battery-powered equipment
• Cell phones and smartphones
• PDAs
• Audio and video signal routing
• Data acquisition systems
• Analog signal multiplexing
• Sample and Hold circuits

Features

• Low On-Resistance (rON): Typically 0.35Ω at 3V supply.
• Low Voltage Operation: Operates from a single +1.65V to +3.6V supply.
• Low Power Consumption: Reduces overall system power requirements.
• Fast Switching Speed: Enables high-speed data transfer and signal processing.
• Break-Before-Make Switching: Prevents shorting during channel transitions.
• TTL/CMOS Logic Compatible Inputs: Simplifies interfacing with digital control systems.
• Wide Bandwidth: Supports a broad range of signal frequencies.
• Available in a small package: Space-saving design for compact applications.

Benefits

• Improved Signal Integrity: Low on-resistance minimizes signal distortion and loss.
• Extended Battery Life: Low power consumption contributes to longer operating times in portable devices.
• Enhanced System Performance: Fast switching speed enables efficient data processing.
• Reduced System Complexity: TTL/CMOS compatible inputs simplify integration with digital circuits.
• Design Flexibility: Wide supply voltage range offers versatility in different application environments.
• Reliable Operation: Break-before-make switching prevents damage caused by short circuits.

Additional Details

The ISL43L220IRZ features a typical on-resistance flatness of 0.1Ω, ensuring consistent performance across the signal range. The device also boasts low charge injection, minimizing signal distortion during switching. The operating temperature range is typically -40°C to +85°C, making it suitable for a wide range of industrial and commercial applications. This part is commonly used in applications requiring precise switching of analog or digital signals, such as audio and video routing, data acquisition, and communication systems. The ISL43L220IRZ is available in industry-standard packages, facilitating easy integration into existing designs.
