Same model may have multiple batches, images only for reference.

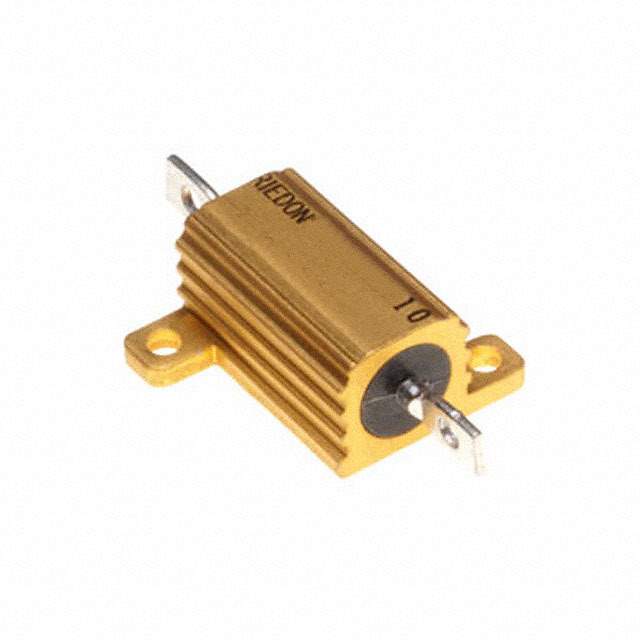

UAL10-15KF8 Real Image
Same model may have multiple batches, images only for reference.

UAL10-15KF8

Part No UAL10-15KF8
Manufacturer Riedon
Catalog Chassis Mount Resistors
Description RES CHAS MNT 15K OHM 1% 10W
Datasheet
UAL10-15KF8 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Riedon
Packaging Bulk
Status Active
Resistance (Ohms) 15k
Tolerance ±1%
Power (Watts) 10W
Composition Wirewound
Temperature Coefficient ±20ppm/°C
Temperature Range - Operating -55°C to 275°C
Features Moisture Resistant, Pulse Withstanding
Coating, Housing Type Aluminum
Mounting Feature Flanges
Height - Seated (Max) 0.417" (10.60mm)
Lead Style Solder Lugs
Dimension Axial, Box
Win Source Part Number 101730-UAL10-15KF8
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian UAL10-15KF8 CAD Model

Description

The UAL10 series resistor by Riedon is designed for bulk packaging.

  • Composition: This resistor has a wirewound composition and a resistance of 15k Ohms.
  • Applications: It is designed for moisture resistance and pulse withstanding applications.
  • Power Rating: The power rating of this resistor is 10W and it has flanges for mounting.
  • Tolerance: The tolerance is ±1% and the temperature coefficient is ±20ppm/°C.
  • Height: The height of the resistor is 0.417" and it has solder lugs for lead style.
  • Operating Temperature: The operating temperature range is -55°C to 275°C.
