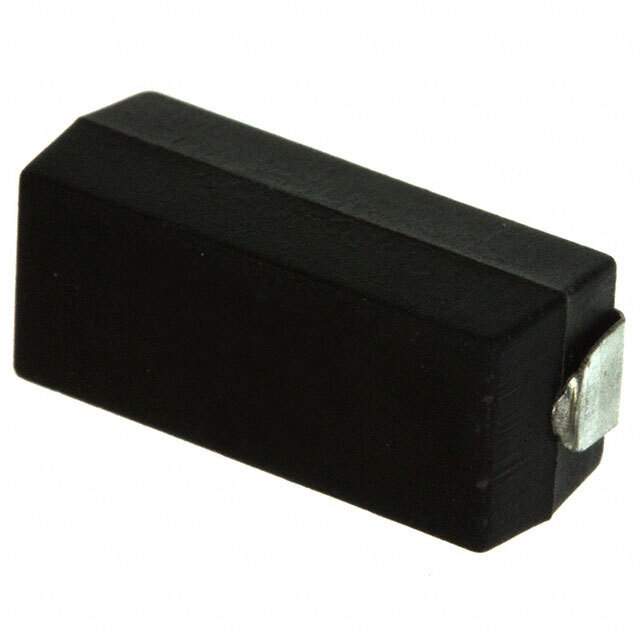

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Riedon
Series S
Package Tape & Reel (TR)
Resistance 681 Ohms
Tolerance ±1%
Power (Watts) 3W
Composition Wirewound
Features Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
Temperature Coefficient ±20ppm/°C
Temperature Range - Operating -55°C ~ 275°C
Package / Case 6327 J-Lead
Dimension 0.626" L x 0.272" W (15.90mm x 6.90mm)
Height - Seated (Max) 0.268" (6.80mm)
Number of Terminations 2
Other Names S-3-681FTR,S-3-681FTR
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1237153-S3-681RF8
Ultra Librarian 3D Model Ultra Librarian S3-681RF8 CAD Model

Description

The Riedon S-3-681FTR resistor is a wirewound component that is part of the S series.

  • Resistance: 681 Ohms
  • Power Rating: 3W
  • Type: Chip Resistor
  • Mounting Type: Surface Mountable
  • Packaging: Tape and Reel
  • Features: Flameproof, Moisture-Resistant, Pulse-withstanding
  • Tolerance: ±1%
  • Temperature Coefficient: ±20ppm/°C
  • Failure Rate: -
  • Terminations: 2
  • Package/Case: 6327 J-Lead
  • Supplier Device Package: -
  • Temperature Range: -55°C to 275°C
  • REACH: Affected
