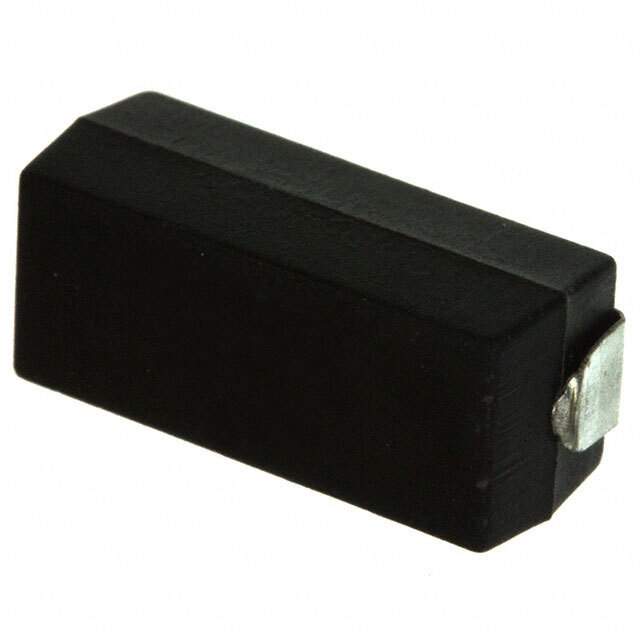

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Riedon
Series S
Package Tape & Reel
Resistance 15 Ohms
Tolerance ±1%
Power (Watts) 3W
Composition Wirewound
Features Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
Temperature Coefficient ±20ppm/°C
Temperature Range - Operating -55°C ~ 275°C
Package / Case 6327 J-Lead
Dimension 0.626" L x 0.272" W (15.90mm x 6.90mm)
Height - Seated (Max) 0.268" (6.80mm)
Number of Terminations 2
Other Names S-3-15FTR,S-3-15FTR,S-3-15FCT,S-3-15FCT,S-3-15FDKR,696-1225-1,696-1225-2,S315OHM1,696-1225-6,S-3-15FDKR
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1237211-S3-15RF1
Ultra Librarian 3D Model Ultra Librarian S3-15RF1 CAD Model

Description

The Riedon S-3-15FTR resistor is part of the S series of chip resistors, designed for use in current sensing applications.

  • Manufacturer: Riedon
  • Power Rating: 3W
  • Resistor Type: Wirewound
  • Features: Flame-proof, moisture-resistant, and pulse-withstanding
  • Resistance: 15 Ohms
  • Tolerance: ±1%
  • Material: Wirewound
  • Package: 6327 J-Lead
  • Packaging: Tape and Reel
  • Terminations: 2
  • Maximum Seated Height: 0.268" (6.80mm)
  • Operating Temperature Range: -55°C to 275°C
  • Dimensions: 0.626" L x 0.272" W (15.90mm x 6.90mm)
  • ECCN: EAR99
  • REACH: Affected
  • MSL Level: 1 (Unlimited)
