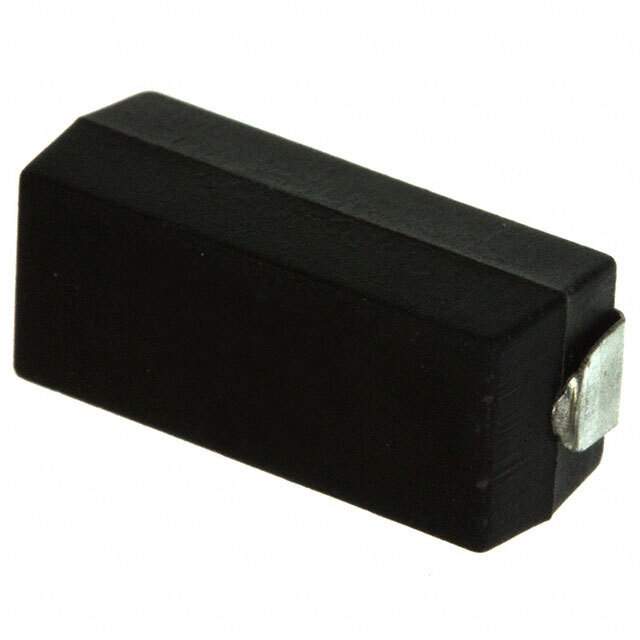

S3-0R03F1 Real Image
Same model may have multiple batches, images only for reference.

S3-0R03F1

Part No S3-0R03F1
Manufacturer Riedon
Catalog Chip Resistor - Surface Mount
Description RES 0.03 OHM 1% 3W 6327 / 30 mOhms ±1% 3W Chip Resistor 6327 J-Lead Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety Wirewound
Datasheet
S3-0R03F1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Riedon
Series S
Package Tape & Reel (TR)
Resistance 30 mOhms
Tolerance ±1%
Power (Watts) 3W
Composition Wirewound
Features Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
Temperature Range - Operating -55°C ~ 275°C
Package / Case 6327 J-Lead
Dimension 0.626" L x 0.272" W (15.90mm x 6.90mm)
Height - Seated (Max) 0.268" (6.80mm)
Number of Terminations 2
Other Names S3-0R03F1CT,S-3-0.030FDKR,S30R03F1,S-3-0.030FTR,S3-0R03F1DKR,S3-0R03F1TR,S-3-0.030FTR,S-3-0.030FCT,S-3-0.030FCT,S-3 0.030 OHM 1%,S-3-0.030FDKR
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1237176-S3-0R03F1
Ultra Librarian 3D Model Ultra Librarian S3-0R03F1 CAD Model

Description

The Riedon S3-0R03F1 chip resistor is a wirewound resistor with a resistance of 30 mOhms and a power rating of 3W.

  • Resistance: 30 mOhms
  • Power Rating: 3W
  • Tolerance: ±1%
  • Application: Current Sensing
  • Features: Flame Proof, Moisture Resistant, Pulse Withstanding, and Safety Compliant
  • Package: 6327 J-Lead
  • Packaging: Tape and Reel
  • Height: 0.268" (6.80mm)
  • Operating Temperature: -55°C to 275°C
