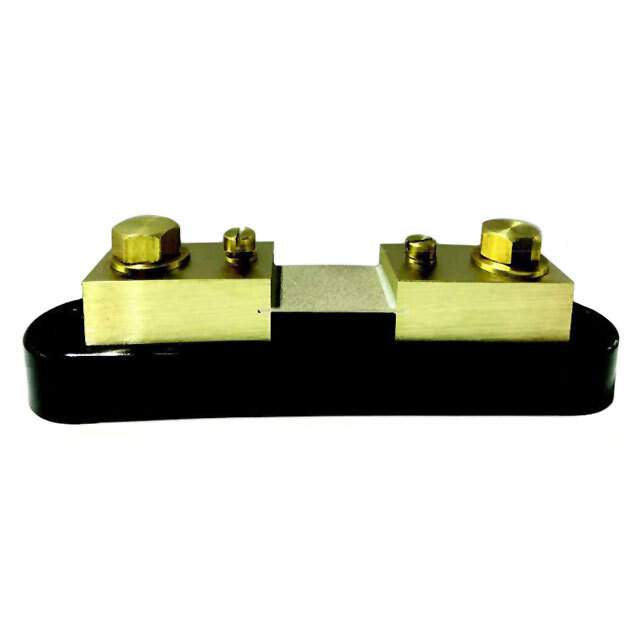

RSN-10-100B Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Resistors
Manufacturer Riedon
Packaging Bulk
Status Active
Resistance (Ohms) 0.01
Tolerance ±0.1%
Power (Watts) 1W
Composition Metal Element
Temperature Coefficient ±15ppm/°C
Temperature Range - Operating 30°C to 70°C
Features Current Sense
Mounting Feature Flanges
Height - Seated (Max) 1.380" (35.05mm)
Dimension Rectangular Case
Win Source Part Number 1098694-RSN-10-100B
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RSN-10-100B CAD Model

Description

The Riedon RSN-10-100B is a current sense resistor that is packaged in bulk and has a power of 1W.

  • Packaging: Bulk
  • Power: 1W
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±15ppm/°C
  • Mounting: Flanges
  • Resistance: 0.01 ohms
  • Category: Resistor
  • Status: Active
  • Popularity: Medium
  • Supply and Demand: Balanced
  • Temperature Range: 30°C to 70°C
  • Case: Rectangular
