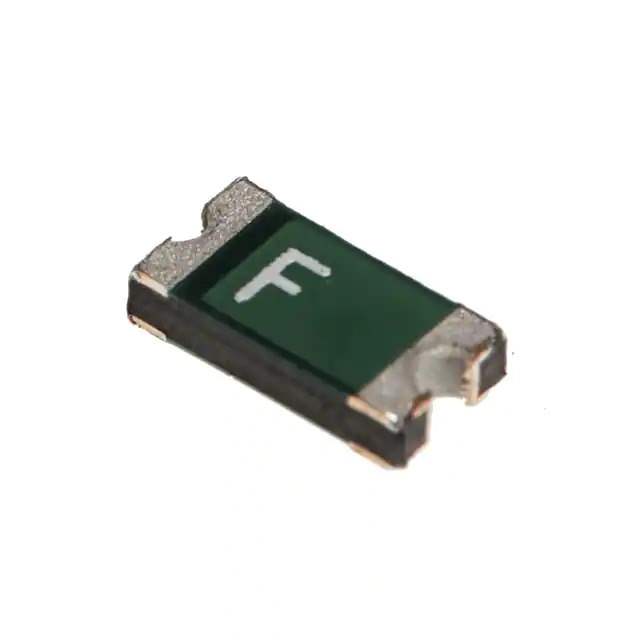

FSMD100-1206R Real Image
Same model may have multiple batches, images only for reference.

FSMD100-1206R

Part No FSMD100-1206R
Manufacturer RFE/Fuzetec
Catalog PTC Resettable Fuses
Description RESETTABLE FUSE - SMD, 1206 SIZE
Datasheet
FSMD100-1206R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr RFE/Fuzetec
Series FSMD1206
Package Tape & Reel
Product Status Active
Voltage - Max 6V
Current - Hold (Ih) (Max) 1 A
Current - Trip (It) 1.8 A
Current - Max 100 A
Time to Trip 300 ms
Resistance - Initial (Ri) (Min) 55 mOhms
Resistance - Post Trip (R1) (Max) 210 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric), Concave
Size / Dimension 0.128" L x 0.065" W (3.25mm x 1.65mm)
Thickness (Max) 0.039" (1.00mm)
Approval Agency cUL, TUV, UL
Standard Package 50 pcs
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 133492-FSMD100-1206R
Ultra Librarian 3D Model Ultra Librarian FSMD100-1206R CAD Model

Description

The FSMD1206 PTC Resettable Fuse is a circuit protection component designed for use in electronic devices. It is part of the FSMD series from RFE/Fuzetec.

  • Size: 1206 (3216 Metric), 0.128" L x 0.065" W (3.25mm x 1.65mm)
  • Thickness: 0.039" (1.00mm)
  • Mounting Type: Surface Mount
  • Packaging: Tape & Reel
  • Maximum Voltage Rating: 6V
  • Maximum Current Rating: 100 A
  • Current Hold (Ih): 1 A
  • Current Trip (It): 1.8 A
  • Time to Trip: 300 milliseconds
  • Operating Temperature: -40°C to 85°C
  • Initial Resistance (Ri): 55 mOhms
  • Post Trip Resistance (R1): 210 mOhms
  • Approvals: cUL, TUV, and UL
