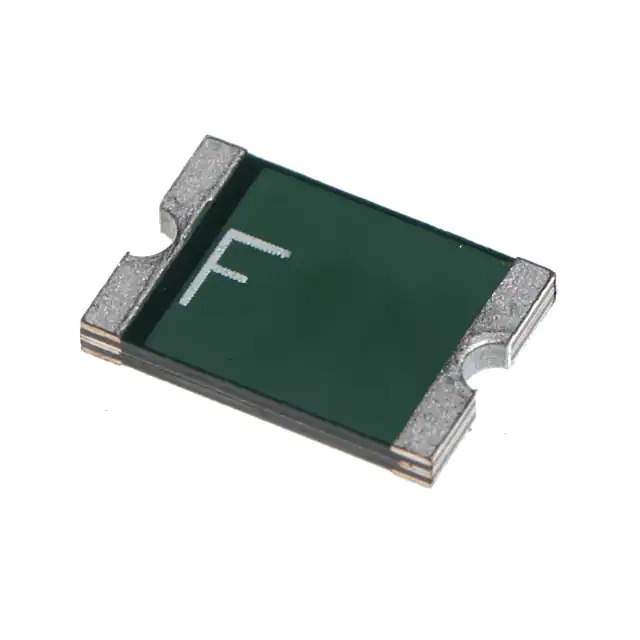

FSMD050-2920-R Real Image
Same model may have multiple batches, images only for reference.

FSMD050-2920-R

Part No FSMD050-2920-R
Manufacturer RFE/Fuzetec
Catalog PTC Resettable Fuses
Description RESETTABLE FUSE - SMD, 2920 SIZE
Datasheet
FSMD050-2920-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr RFE/Fuzetec
Series FSMD2920
Package Tape & Reel
Product Status Active
Voltage - Max 60V
Current - Hold (Ih) (Max) 500 mA
Current - Trip (It) 1 A
Current - Max 100 A
Time to Trip 4 s
Resistance - Initial (Ri) (Min) 300 mOhms
Resistance - Post Trip (R1) (Max) 1.4 Ohms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 2920 (7351 Metric), Concave
Size / Dimension 0.290" L x 0.202" W (7.36mm x 5.12mm)
Thickness (Max) 0.045" (1.15mm)
Approval Agency cUL, TUV, UL
Standard Package 50 pcs
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 133481-FSMD050-2920-R
Ultra Librarian 3D Model Ultra Librarian FSMD050-2920-R CAD Model

Description

The RFE/Fuzetec FSMD050-2920-R is a PTC resettable fuse that provides circuit protection. It is part of the FSMD2920 series and comes in a tape and reel package.

  • Size: 0.290" L x 0.202" W (7.36mm x 5.12mm)
  • Maximum Thickness: 0.045" (1.15mm)
  • Maximum Voltage: 60V
  • Maximum Current: 100A
  • Trip Current: 1A
  • Time to Trip: 4s
  • Mounting: Surface Mount
  • Package: Concave 2920 (7351 Metric)
  • Approvals: cUL, TUV, and UL
