Same model may have multiple batches, images only for reference.

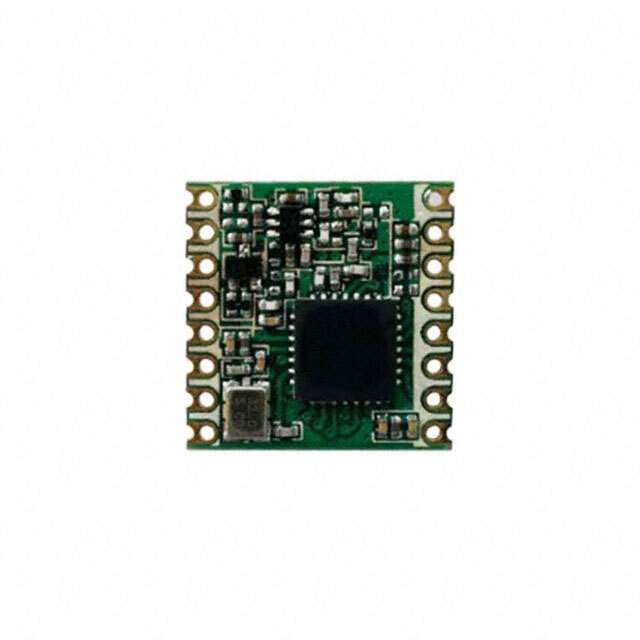

RFM95W-868S2 Real Image
Same model may have multiple batches, images only for reference.

RFM95W-868S2

Part No RFM95W-868S2
Manufacturer RF Solutions
Catalog RF Transceiver Modules
Description RF TXRX MODULE ISM < 1GHZ SMD / General ISM < 1GHz LoRa™ Transceiver Module 868MHz Antenna Not Included Surface Mount
Datasheet
RFM95W-868S2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr RF Solutions
Package Strip
RF Family/Standard General ISM < 1GHz
Protocol LoRa™
Modulation FSK, GFSK, GMSK, MSK, OOK
Frequency 868MHz
Data Rate 300kbps
Power - Output 17dBm
Sensitivity -123dBm
Serial Interfaces SPI
Antenna Type Antenna Not Included
Voltage - Supply 1.8V ~ 3.7V
Current - Receiving 10.8mA ~ 12.1mA
Current - Transmitting 20mA ~ 120mA
Mounting Type Surface Mount
Temperature Range - Operating -20°C ~ 70°C
Package / Case 16-SMD Module
Base Product Number RFM95
Standard Package 1
MSL Level 1 (Unlimited)
ECCN 5A991G
HTSUS 8525.60.1050
Win Source Part Number 1349879-RFM95W-868S2
Ultra Librarian 3D Model Ultra Librarian RFM95W-868S2 CAD Model

Description

The RF Solutions RFM95W-868S2 is a LoRa™ RF transceiver module designed for wireless communication applications.

  • Frequency: 868MHz
  • Data Rate: 300kbps
  • Modulation: FSK, GFSK, GMSK, MSK, OOK
  • Interface: SPI
  • Power Output: 17dBm
  • Sensitivity: -123dBm
  • Current Consumption (Receiving): 10.8mA to 12.1mA
  • Current Consumption (Transmitting): 20mA to 120mA
  • Voltage Supply Range: 1.8V to 3.7V
  • Operating Temperature Range: -20°C to 70°C
  • Package: 16-SMD Module
  • Mounting Type: Surface Mount
