Same model may have multiple batches, images only for reference.

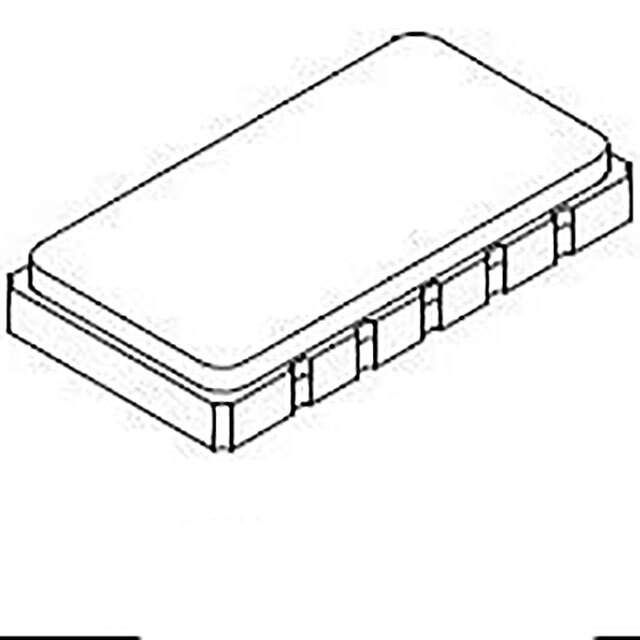

SF2229A Real Image
Same model may have multiple batches, images only for reference.

SF2229A

Part No SF2229A
Manufacturer RF Monolithics, Inc
Catalog SAW Filters
Datasheet
SF2229A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>SAW Filters
Mfr RFMi
Package Tape & Reel (TR),Tape & Reel (TR),Bag
Frequency - Center 70MHz
Bandwidth 920kHz, 1.2MHz, 2.2MHz
Insertion Loss 10.5dB
Applications IF
Mounting SMD (SMT)
Package / Case 12-SMD, No Lead
Height (Max) 0.071" (1.80mm)
Dimension 0.524" L x 0.256" W (13.30mm x 6.50mm)
Base Product Number SF2229
Other Names 2410-SF2229ATR2,2410-SF2229A,2410-SF2229ATR
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 1275805-SF2229A
Ultra Librarian 3D Model Ultra Librarian SF2229A CAD Model

Description

The SF2229A is an SAW filter designed for IF applications.

  • Manufacturer: RFMi
  • Center Frequency: 70MHz
  • Bandwidth: 920kHz, 1.2MHz, and 2.2MHz
  • Insertion Loss: 10.5dB
  • Package: 12-SMD, No Lead
  • Height: 0.071" (1.80mm)
  • Dimensions: 0.524" L x 0.256" W (13.30mm x 6.50mm)
  • Package: Tape & reel (TR), tape & reel (TR), and bag
  • Also known as: 2410-SF2229ATR2, 2410-SF2229A, and 2410-SF2229ATR
