Same model may have multiple batches, images only for reference.

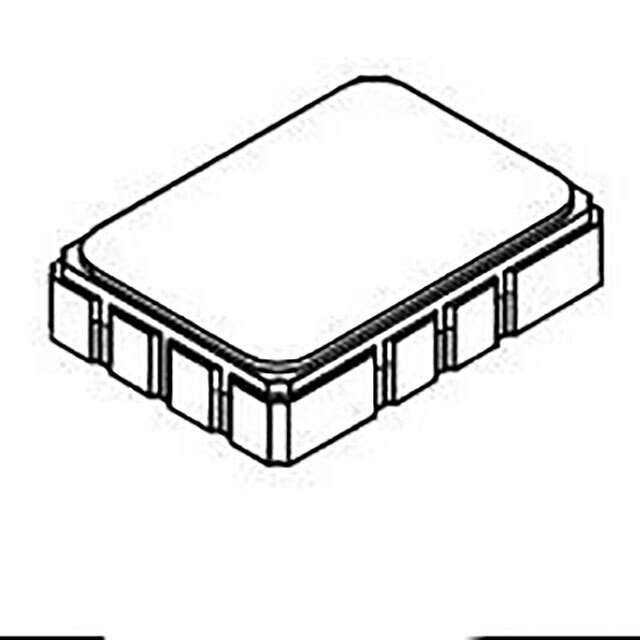

SF2026B Real Image
Same model may have multiple batches, images only for reference.

SF2026B

Part No SF2026B
Manufacturer RF Monolithics, Inc
Catalog SAW Filters
Datasheet
SF2026B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>SAW Filters
Mfr RFMi
Package Tape & Reel (TR),Tape & Reel (TR),Bag
Frequency - Center 114.815MHz
Bandwidth 6.3MHz, 7.24MHz
Insertion Loss 12.5dB
Applications General Purpose
Mounting SMD (SMT)
Package / Case 10-SMD, No Lead
Height (Max) 0.079" (2.00mm)
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Base Product Number SF2026
Other Names 2410-SF2026BTR2,2410-SF2026BTR,2410-SF2026B
Standard Package 2,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 1275854-SF2026B
Ultra Librarian 3D Model Ultra Librarian SF2026B CAD Model

Description

The SF2026B is a SAW filter that belongs to the Filters category of electronic components.

  • Manufactured by: RFMi
  • Win Source Part Number: 1275854
  • Package: tape and reel package
  • Standard Package: 2,000
  • Application: general-purpose filter
  • Mounting: surface
  • Insertion Loss: 12.5dB
  • Bandwidth: 6.3MHz, 7.24MHz
  • Frequency-Center: 114.815MHz
  • Dimension: 0.276" L x 0.197" W (7.00mm x 5.00mm)
  • ECCN: EAR99
  • MSL Level: 1
