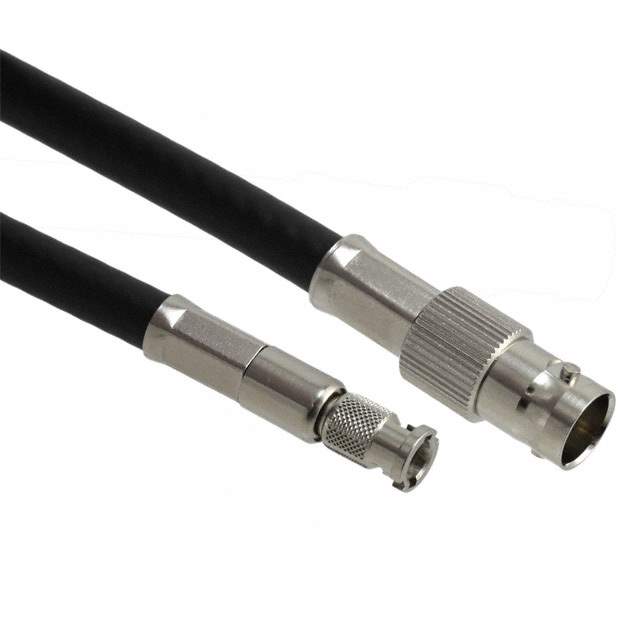

RF2326 Real Image
Same model may have multiple batches, images only for reference.

RF2326

Part No RF2326
Manufacturer RF Micro Devices
Catalog Coaxial Cables (RF)
Description HDBNC (P)-BNC (J) ON B1694A 12"
Datasheet
RF2326 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Cable Assemblies
Manufacturer Amphenol RF Division
Status Active
Gender Female to Male
Style BNC to HD-BNC
1st Connector BNC Female Jack
2nd Connector HD-BNC Male Plug
Length 12.00" (304.80mm)
Cable Type Belden 1694A
Impedance 75 Ohm
Maximum Input Frequency 4GHz
Color Black
Temperature Range - Operating 0°C to 50°C
Win Source Part Number 293327-RF2326
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RF2326 CAD Model

Description

The Amphenol RF Division 293327-RF2326 is a black-colored cable assembly with a BNC female jack as the first connector and an HD-BNC male plug as the second connector.

  • Length: 12.00 inches (304.80mm)
  • Cable Type: Belden 1694A
  • Impedance: 75 Ohm
  • Maximum Input Frequency: 4GHz
  • Designed for: Cable assemblies
  • Classification: Active
  • Temperature Range: 0°C to 50°C
  • Popularity: Medium-popularity product
