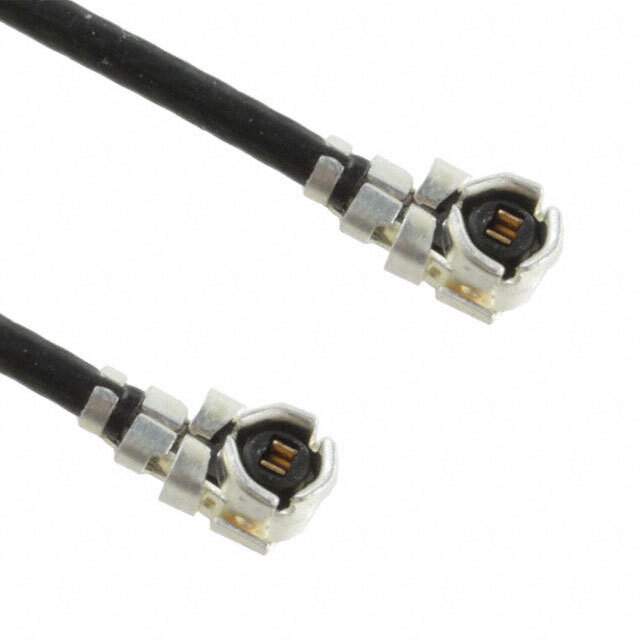

RF2174 Real Image
Same model may have multiple batches, images only for reference.

RF2174

Part No RF2174
Manufacturer RF Micro Devices
Catalog Coaxial Cables (RF)
Description CONN JUMPER AMC PLUG-PLUG 64MM
Datasheet
RF2174 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Cable Assemblies
Manufacturer Amphenol RF Division
Status Active
Gender Female to Female
Style UMCC to UMCC
1st Connector Ultra Miniature Coaxial Plug Female Socket, Right Angle
2nd Connector Ultra Miniature Coaxial Plug Female Socket, Right Angle
Length 2.520" (64.00mm)
Cable Type 1.13mm OD Coaxial Cable
Impedance 50 Ohm
Maximum Input Frequency 6GHz
Color Black
Features Shielded
Temperature Range - Operating -40°C to 90°C
Win Source Part Number 293296-RF2174
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RF2174 CAD Model

Description

The supply and demand status of this component is limited.

  • Type: Shielded cable assembly
  • Length: 2.520 inches
  • Impedance: 50 Ohm
  • Cable Type: 1.13mm OD Coaxial Cable
  • Style: UMCC to UMCC
  • Temperature Range - Operating: -40°C to 90°C
  • Maximum Input Frequency: 6GHz
