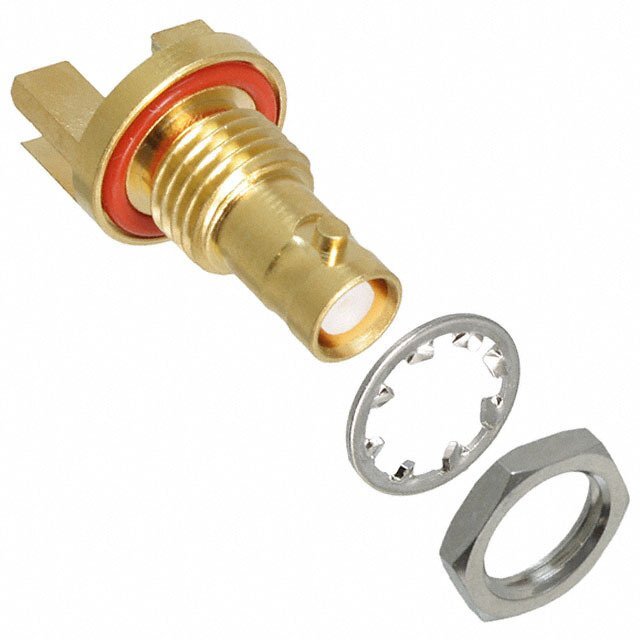

RF2104 RF Micro Devices
Same model may have multiple batches, images only for reference.

RF2104

Part No RF2104
Manufacturer RF Micro Devices
Catalog Coaxial Connectors (RF)
Description CONN HDBNC JCK STR 50OHM EDGEMNT
Datasheet
RF2104 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol RF Division
Packaging Bulk
Status Active
Connector Style BNC, HD
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50 Ohm
Mounting Board Edge, End Launch; Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Fastening Type Bayonet Lock
Maximum Input Frequency 6GHz
Housing Color Gold
Includes 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C to 165°C
Center Contact Material Beryllium Copper
Mating Cycles 500
Win Source Part Number 182702-RF2104
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RF2104 CAD Model

Description

The Amphenol RF Division 182702-RF2104 is a BNC, HD connector type female socket electronic component.

  • Impedance: 50 Ohm
  • Maximum Input Frequency: 6GHz
  • Supply and Demand Status: Balance
  • Package Type: Bulk
  • Connector Style: Bayonet lock
  • Mounting Style: Board edge, end launch and panel mount
