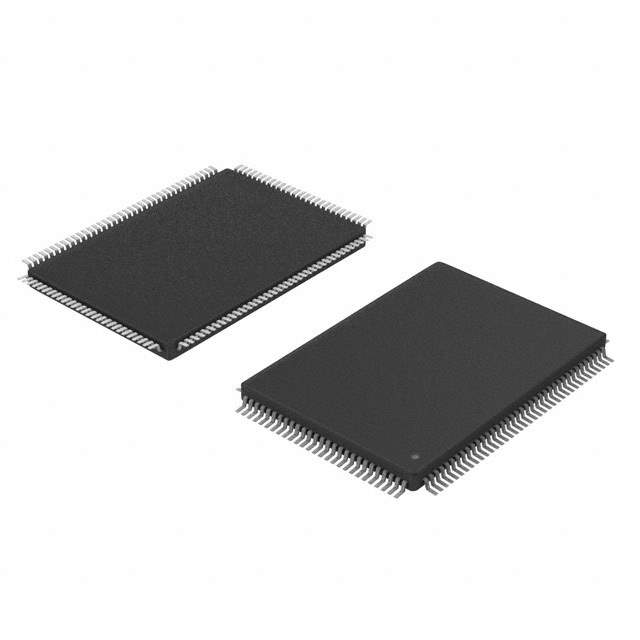

UPD78F1518AGF-GAT-AX Real Image
Same model may have multiple batches, images only for reference.

UPD78F1518AGF-GAT-AX

Part No UPD78F1518AGF-GAT-AX
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 128KB FLASH 128LQFP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features 78K/0R series Microcontroller IC 16-Bit 20MHz 128KB (128K x 8) FLASH
Manufacturer Renesas Electronics America
Series 78K0R/Lx3
Package Tray
Core Processor 78K/0R
Core Size 16-Bit
Speed 20MHz
Connectivity CSI, I2C, LINbus, UART/USART
Peripherals DMA, LCD, LVD, POR, PWM, WDT
Number of I/O 76
Program Memory Size 128KB (128K x 8)
Program Memory Type FLASH
Supply Voltage 1.8V ~ 5.5V
Data Converters A/D 12x12b
Oscillator Type Internal
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting Surface Mount
Package 128-LQFP
Family Name UPD78F1518
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Quantity per package 72
Popularity High
Supply and Demand Status Balance
Win Source Part Number 902239-UPD78F1518AGF-GAT-AX
Ultra Librarian 3D Model Ultra Librarian UPD78F1518AGF-GAT-AX CAD Model

Description

The Renesas Electronics America 78K/0R microcontroller is a 16-bit IC with a core processor of 78K/0R.

  • Series: 78K/0R
  • Core Processor: 78K/0R
  • Speed: 20MHz
  • Program Memory Size: 128KB (128K x 8) FLASH
  • Package: Tray
  • Package / Case: 128-LQFP
  • Mounting Type: Surface Mount
  • Connectivity: CSI, I2C, LINbus, and UART/USART
  • Peripherals: DMA, LCD, LVD, POR, PWM, and WDT
  • I/Os: 76
  • Data Converters: A/D 12x12b
  • Oscillator Type: Internal
  • Supply Voltage: 1.8V to 5.5V
  • Series: 78K0R/Lx3
  • Category: Integrated circuits (ICs)
  • REACH: Unaffected
  • ECCN: EAR99
  • Quantity per Package: 72
  • MSL Level: 1 (Unlimited)
