The SLG59M1558VTR is a high-performance, single-channel power load switch from Renesas (formerly Dialog Semiconductor/Silego). This device is designed to efficiently manage power distribution in various electronic systems, offering features like controlled turn-on, overcurrent protection, and thermal shutdown. It is ideal for applications requiring precise power control and system protection.

Applications

• Power management in laptops and notebooks
• Solid-state drives (SSDs)
• USB power distribution
• Portable devices
• Hot-swap applications

Features

• Low on-resistance (R_DS(ON))
• Adjustable current limit
• Controlled turn-on slew rate
• Overcurrent protection (OCP)
• Thermal shutdown protection (OTP)

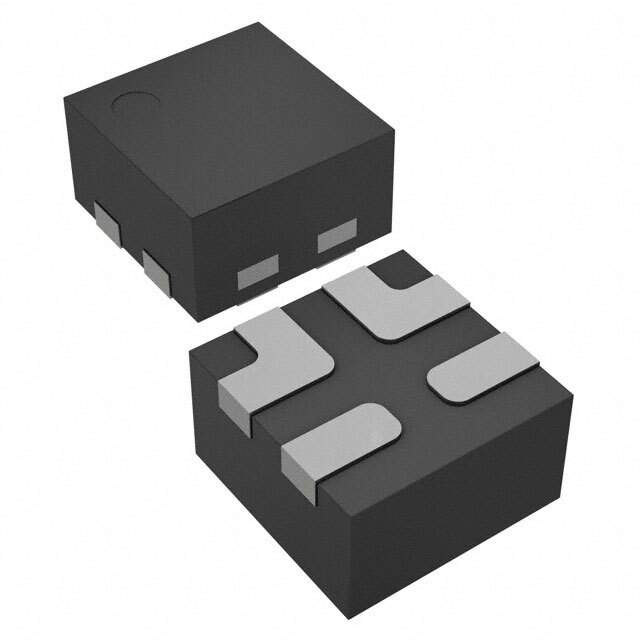

• Small package: STDFN 2x2
• Input voltage range: 2.5V to 5.5V

Benefits

• Efficient power distribution: Low on-resistance minimizes power loss, improving overall system efficiency.
• System protection: Overcurrent and thermal shutdown protection prevent damage to the load and the power source.
• Controlled inrush current: Adjustable slew rate limits inrush current during startup, reducing stress on components.
• Flexible application: Wide input voltage range allows for use in a variety of systems.
• Compact solution: Small package size saves board space.

Additional Details

The SLG59M1558VTR features an adjustable current limit, allowing designers to customize the overcurrent protection threshold based on specific application requirements. The controlled turn-on slew rate minimizes inrush current, preventing voltage droop and potential damage to sensitive components. The device is available in a small STDFN 2x2 package, making it suitable for space-constrained applications. It is crucial to consult the Renesas datasheet for detailed specifications regarding current limit settings, thermal characteristics, and recommended external components to optimize performance.
