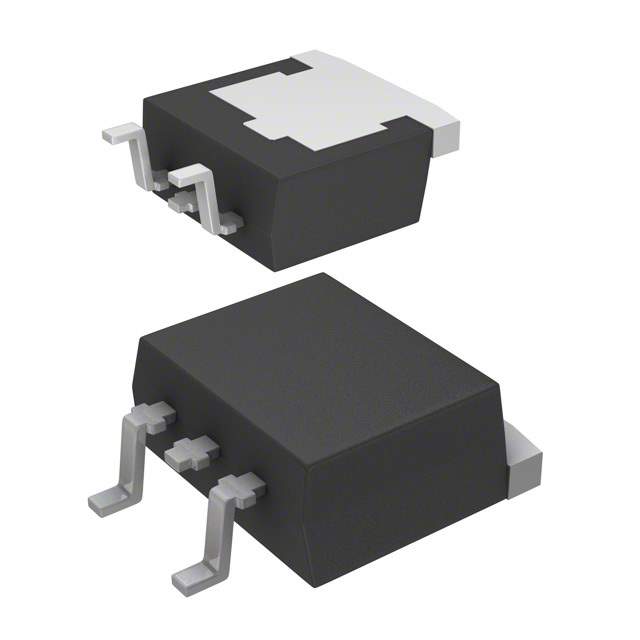

RJH60M3DPE-00#J3 Real Image
Same model may have multiple batches, images only for reference.

RJH60M3DPE-00#J3

Part No RJH60M3DPE-00#J3
Manufacturer Renesas Electronics America
Catalog IGBTs - Single
Description IGBT 600V 35A 113W LDPAK / IGBT Trench 600 V 35 A 113 W Surface Mount LDPAK
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - IGBTs - Single
Mfr Renesas Electronics America Inc
Package Tape & Reel
Product Status Obsolete
IGBT Type Trench
Voltage - Collector Emitter Breakdown (Max) 600 V
Current - Collector (Ic) (Max) 35 A
Vce(on) (Max) @ Vge, Ic 2.3V @ 15V, 17A
Power - Max 113 W
Switching Energy 290µJ (on), 290µJ (off)
Input Type Standard
Gate Charge 60 nC
Td (on/off) @ 25°C 38ns/90ns
Test Condition 300V, 17A, 5Ohm, 15V
Reverse Recovery Time (trr) 90 ns
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Package / Case SC-83
Supplier Device Package LDPAK
Base Product Number RJH60M
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names RJH60M3DPE00J3,RJH60M3DPE-00#J3DKR,RJH60M3DPE-00#J3TR,RJH60M3DPE-00#J3CT
Standard Package 1,000
Win Source Part Number 1190866-RJH60M3DPE-00#J3
Ultra Librarian 3D Model Ultra Librarian RJH60M3DPE-00#J3 CAD Model

Description

The Renesas Electronics America electronic component with the Win Source Part Number 1190866-RJH60M3DPE-00#J3 is an IGBT transistor that falls under the category of discrete semiconductor products.

  • Manufacturer: Renesas Electronics America
  • Maximum Power: 113 W
  • Collector Current: 35 A
  • Voltage Collector Emitter Breakdown: 600 V
  • IGBT Type: Trench
  • Switching Energy (on): 290µJ
  • Switching Energy (off): 290µJ
  • Gate Charge: 60 nC
  • Package/Case: SC-83
  • Supplier Device Package: LDPAK
  • Operating Temperature Range: 150°C (TJ)
