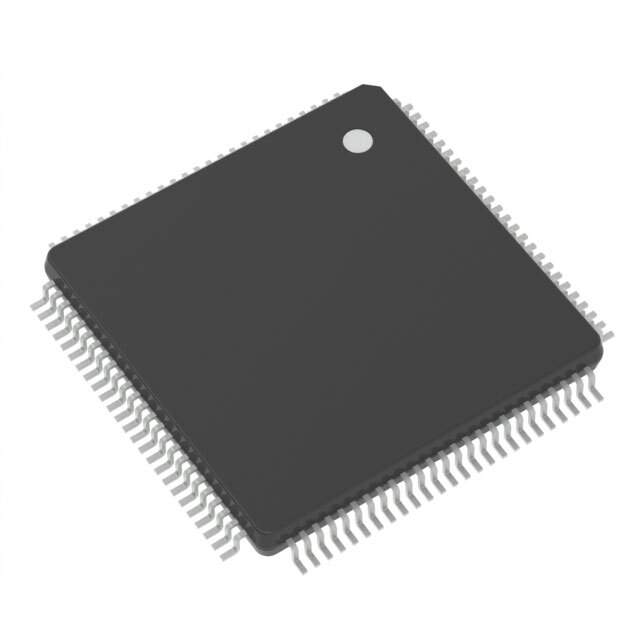

R5F56514ADFB#30 Real Image
Same model may have multiple batches, images only for reference.

R5F56514ADFB#30

Part No R5F56514ADFB#30
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 32BIT 512KB FLSH 144LFQFP / RXv2 RX651 Microcontroller IC 32-Bit Single-Core 120MHz 512KB (512K x 8) FLASH 144-LFQFP (20x20)
Datasheet
R5F56514ADFB#30 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded>Microcontrollers
Manufacturer Renesas Electronics America Inc
Packaging Tray
Core Processor RXv2
Core Size 32-Bit Single-Core
Speed 120MHz
Connectivity CANbus, EBI/EMI, Ethernet, I²C, LINbus, MMC/SD, QSPI, SCI, SPI, UART/USART, USB
Peripherals DMA, LVD, POR, PWM, WDT
Number of I/O 111
Program Memory Size 512KB (512K x 8)
Program Memory Type FLASH
RAM Size 256K x 8
Voltage - Supply (Vcc/Vdd) 2.7V ~ 3.6V
Data Converters A/D 29x12b; D/A 2x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C
Mounting Surface Mount
Case / Package 144-LQFP
Supplier Device Package 144-LFQFP (20x20)
Base Product Number R5F56514
RoHS Status ROHS3 Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Standard Package 60
Win Source Part Number 1318679-R5F56514ADFB#30
Ultra Librarian 3D Model Ultra Librarian R5F56514ADFB#30 CAD Model

Description

The R5F56514ADFB#30 is a microcontroller from Renesas Electronics America Inc.

  • Core Processor: RXv2
  • Speed: 120MHz
  • Program Memory Size: 512KB (512K x 8) of FLASH type
  • RAM Size: 256K x 8
  • Data Converters: A/D 29x12b; D/A 2x12b
  • Package: tray
  • Supplier Device Package: 144-LFQFP (20x20)
  • Standard Package: 60
  • Mounting: surface mount technology
  • I/O: 111
  • Connectivity: CANbus, EBI/EMI, Ethernet, I²C, LINbus, MMC/SD, QSPI, SCI, SPI, UART/USART
  • Peripherals: DMA, LVD, POR, PWM, WDT
  • Oscillator Type: internal
  • Temperature Range: -40°C to 85°C
  • Supply Voltage Range: 2.7V to 3.6V
  • ECCN: 3A991A2 compliant
  • ROHS3 compliant: true
