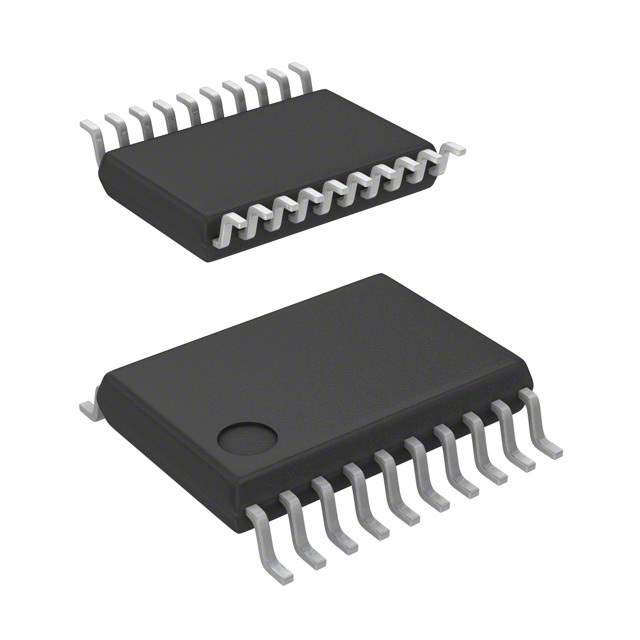

R5F21296KSP#W4 Real Image
Same model may have multiple batches, images only for reference.

R5F21296KSP#W4

Part No R5F21296KSP#W4
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 32KB FLASH 20LSSOP / R8C series Microcontroller IC 16-Bit 16MHz 32KB (32K x 8) FLASH 20-LSSOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Renesas Electronics America Inc
Series R8C/2x/29
Package Tape & Reel (TR)
Product Status Not For New Designs
Core Processor R8C
Core Size 16-Bit
Speed 16MHz
Connectivity I2C, LINbus, SIO, SSU, UART/USART
Peripherals LED, POR, Voltage Detect, WDT
Number of I/O 13
Program Memory Size 32KB (32K x 8)
Program Memory Type FLASH
EEPROM Size 2K x 8
RAM Size 1.5K x 8
Supply Voltage - Operating 2.7V ~ 5.5V
Data Converters A/D 4x10b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)
Package / Case 20-LSSOP (0.173", 4.40mm Width)
Supplier Device Package 20-LSSOP
Base Product Number R5F21296
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Standard Package 2,500
Win Source Part Number 1146206-R5F21296KSP#W4
Ultra Librarian 3D Model Ultra Librarian R5F21296KSP#W4 CAD Model

Description

The R5F21296KSP#W4 is a 16-bit microcontroller from the R8C/2x/29 series by Renesas Electronics America.

  • Core Processor: R8C
  • Speed: 16MHz
  • Package: Tape & Reel (TR)
  • Mounting Type: SMD (SMT)
  • I/O: 13
  • Program Memory Size: 32KB (32K x 8)
  • Program Memory Type: FLASH
  • EEPROM Size: 2K x 8
  • RAM Size: 1.5K x 8
  • Data Converters: A/D 4x10b
  • Internal Oscillator: Yes
  • Operating Temperature: -40°C ~ 125°C (TA)
  • Operating Supply Voltage: 2.7V ~ 5.5V
  • MSL Level: 3 (168 Hours)
  • REACH Status: REACH Unaffected
  • HTSUS: 8542.31.0001
