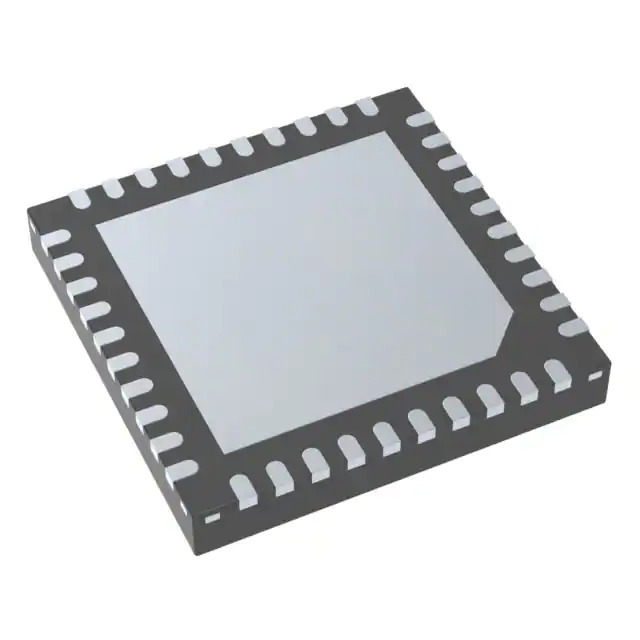

R5F104EFANA#20 Renesas Electronics America
Same model may have multiple batches, images only for reference.

R5F104EFANA#20

Part No R5F104EFANA#20
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 96KB FLASH 40HWQFN / RL78 RL78/G14 Microcontroller IC 16-Bit 32MHz 96KB (96K x 8) FLASH 40-HWQFN (6x6)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Renesas Electronics America Inc
Series RL78/G14
Package Tray
Product Status Active
Core Processor RL78
Core Size 16-Bit
Speed 32MHz
Connectivity CSI, I²C, LINbus, UART/USART
Peripherals DMA, LVD, POR, PWM, WDT
Number of I/O 28
Program Memory Size 96KB (96K x 8)
Program Memory Type FLASH
EEPROM Size 8K x 8
RAM Size 12K x 8
Voltage - Supply (Vcc/Vdd) 1.6V ~ 5.5V
Data Converters A/D 9x8/10b; D/A 2x8b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 40-WFQFN Exposed Pad
Supplier Device Package 40-HWQFN (6x6)
Base Product Number R5F104
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 1357122-R5F104EFANA#20
Ultra Librarian 3D Model Ultra Librarian R5F104EFANA#20 CAD Model

Description

The R5F104EFANA#20 is an embedded microcontroller from Renesas Electronics America Inc.

  • Series: RL78/G14
  • Application: Embedded
  • Operating Temperature: -40°C to 85°C
  • Core Processor: 16-bit RL78
  • Speed: 32MHz
  • Connectivity: CSI, I²C, LINbus, and UART/USART
  • Peripherals: DMA, LVD, POR, PWM, and WDT
  • Program Memory Size: 96KB (96K x 8)
  • Memory Type: Flash
  • Number of I/O: 28
  • Voltage Supply: 1.6V to 5.5V
