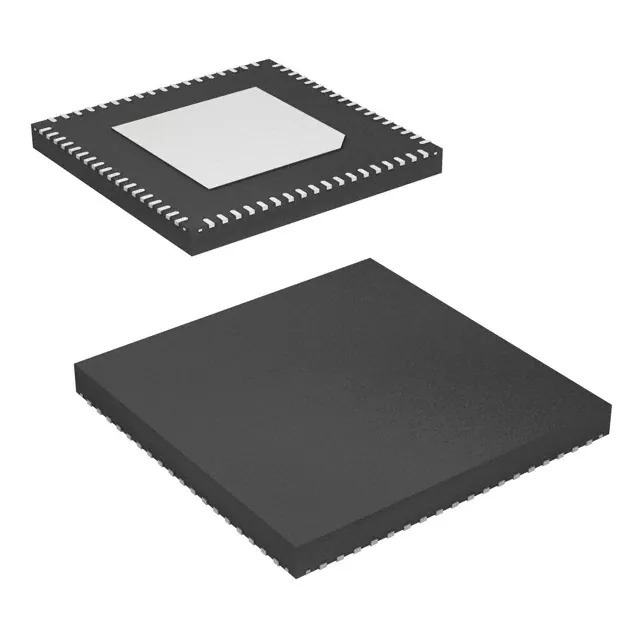

KAD5514P-12Q72 Renesas Electronics America
Same model may have multiple batches, images only for reference.

KAD5514P-12Q72

Part No KAD5514P-12Q72
Manufacturer Renesas Electronics America
Catalog Data Acquisition - Analog to Digital Converters (ADC)
Description IC ADC 14BIT SAR 72QFN / 14 Bit Analog to Digital Converter 1 Input 1 SAR 72-QFN (10x10)
Datasheet
KAD5514P-12Q72 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Data Acquisition - Analog to Digital Converters (ADC)
Mfr Renesas Electronics America Inc
Series -
Package Tray
Product Status Active
Number of Bits 14
Sampling Rate (Per Second) 125M
Number of Inputs 1
Input Type Differential
Data Interface LVDS - Parallel, Parallel
Configuration S/H-ADC
Number of A/D Converters 1
Architecture SAR
Reference Type Internal
Voltage - Supply, Analog 1.7V ~ 1.9V
Voltage - Supply, Digital 1.7V ~ 1.9V
Features -
Temperature Range - Operating -40°C ~ 85°C
Package / Case 72-VFQFN Exposed Pad
Supplier Device Package 72-QFN (10x10)
Mounting Type Surface Mount
Base Product Number KAD5514
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991C3
HTSUS 8542.39.0001
Win Source Part Number 1355929-KAD5514P-12Q72
Ultra Librarian 3D Model Ultra Librarian KAD5514P-12Q72 CAD Model

Description

The 1355929-KAD5514P-12Q72 is an analog-to-digital converter (ADC) integrated circuit from Renesas Electronics.

  • Operating Temperature: -40°C to 85°C
  • Analog Voltage Supply: 1.7V to 1.9V
  • Digital Voltage Supply: 1.7V to 1.9V
  • Resolution: 14-bit
  • Architecture: SAR (Successive Approximation Register)
  • Input Type: Differential
  • Data Interface: LVDS-Parallel, Parallel
  • Sampling Rate: 125M per second
