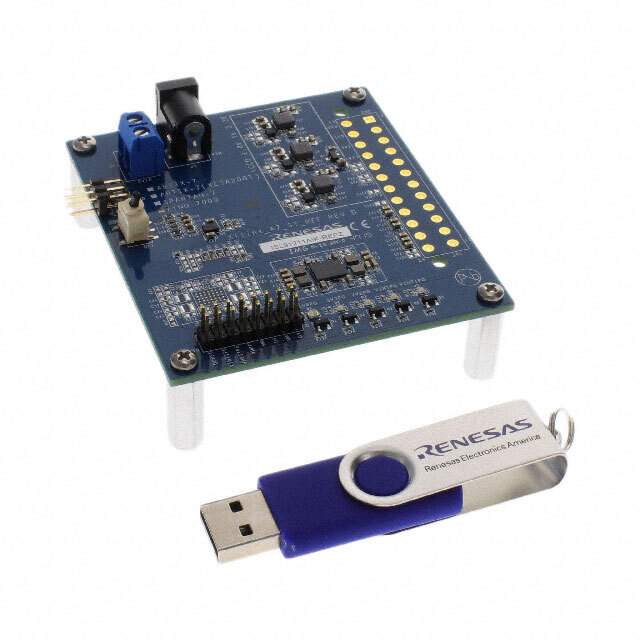

The ISL91211AIK-REFZ is an evaluation board designed to demonstrate the capabilities of the ISL91211A high-efficiency synchronous boost regulator from Renesas Electronics. This evaluation board allows designers to quickly and easily evaluate the performance of the ISL91211A in various boost converter applications.

Applications:

• Evaluation of the ISL91211A boost regulator
• Prototyping boost converter designs
• Testing different operating conditions
• Demonstrating high-efficiency power conversion

Features:

• Onboard ISL91211A boost regulator: Allows for direct evaluation of the device.
• Adjustable output voltage: Enables testing at different voltage levels.
• Test points for key signals: Facilitates performance measurements.
• Input and output connectors: Simplifies connection to external power supplies and loads.
• Comprehensive documentation: Provides detailed information on the board and the ISL91211A.

Benefits:

• Accelerated design cycle for boost converter applications.
• Easy evaluation of the ISL91211A performance.
• Reduced risk of design errors.
• Faster time-to-market.

Additional Details:

The ISL91211AIK-REFZ evaluation board includes all the necessary components to evaluate the ISL91211A boost regulator. The board allows users to adjust the output voltage and measure key performance parameters, such as efficiency and ripple. The comprehensive documentation provides detailed information on the board's operation and the ISL91211A's features.

The ISL91211A is a high-efficiency synchronous boost regulator that is ideal for applications requiring a stable output voltage from a low input voltage source. The ISL91211AIK-REFZ provides a convenient platform for evaluating this device and developing boost converter designs. The board is designed for easy connection to external power supplies, loads, and measurement equipment.
