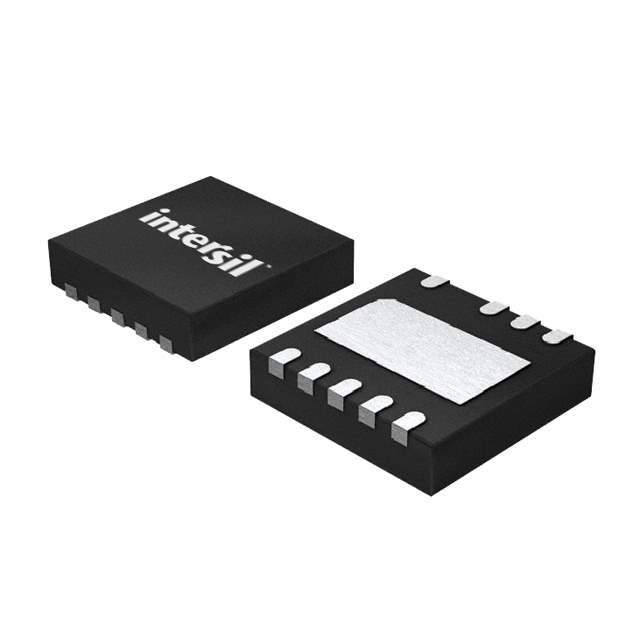

ISL89400AR3Z

Name: ISL89400AR3Z
Brand: Renesas Electronics America
SKU: 607715
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ISL89400AR3Z
Manufacturer	Renesas Electronics America
Catalog	PMIC - Gate Drivers
Description	100V, 1.25A Peak, High Frequency Half-Bridge Drivers \| IC MOSFET DRVR 100V 1.25A 9-DFN
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Integrated Circuits
Manufacturer	Renesas Electronics America Inc.
Packaging	Tube
Driven Configuration	Half-Bridge
Channel Type	Independent
Number of Drivers	2
Gate Type	N-Channel MOSFET
Supply Voltage (V)	9V ~ 14V
Logic Voltage - VIL, VIH	3.7V, 7.4V
Current - Peak Output (Source, Sink)	1.25A, 1.25A
Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	100V
Rise / Fall Time	16ns, 16ns
Temperature Range - Operating	-40°C ~ 125°C
Mounting Style	SMD
Manufacturer Package	9-VFDFN Exposed Pad
Supplier Device Package	9-DFN-EP (3x3)
Family Part Number	ISL89400
Manufacturer Pack Quantity	100
MSL Level	1 (Unlimited)
Win Source Part Number	1190403-ISL89400AR3Z
Manufacturer Homepage	www.intersil.com/cda/home
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian ISL89400AR3Z CAD Model

Alternative Products

Description

The Renesas Electronics America Inc. ISL89400AR3Z is an independent, non-inverting input type half-bridge driver with two drivers.

Input Type: Non-Inverting
Driver Configuration: Half-Bridge
Number of Drivers: 2
Driven Configuration: N-Channel MOSFET
Gate Type: N-Channel MOSFET
Logic Voltage VIL: 3.7V
Logic Voltage VIH: 7.4V
Peak Output Source: 1.25A
Peak Output Sink: 1.25A
High-Side Voltage: 100V
Package: 9-DFN-EP (3x3)
Supply and Demand Status: Limited
MSL Level: 1 (Unlimited)
Supply Voltage: 9V ~ 14V
Rise/Fall Time: 16ns, 16ns
