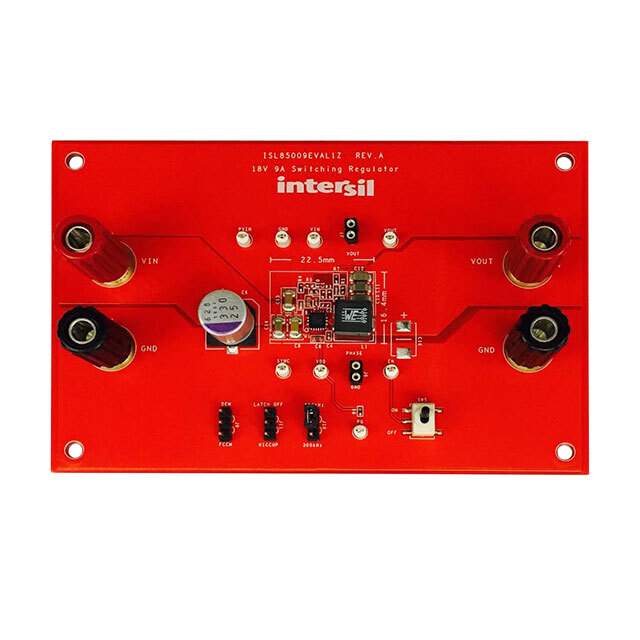

ISL85009EVAL1Z Real Image
Same model may have multiple batches, images only for reference.

ISL85009EVAL1Z

Part No ISL85009EVAL1Z
Manufacturer Renesas Electronics America
Catalog Evaluation Boards - DC/DC & AC/DC (Off - Line)SMPS
Description ISL85009 EVALUATON BRD 1 - 15 LD / ISL85009 series DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Datasheet
ISL85009EVAL1Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Mfr Renesas Electronics America Inc
Package Bulk
Main Purpose DC/DC, Step Down
Outputs and Type 1, Non-Isolated
Voltage - Output 1.8V
Current - Output 9A
Voltage - Input 4.5V ~ 18V
Regulator Topology Buck
Frequency - Switching 600kHz
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part ISL85009
Base Product Number ISL85009
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Other Names -ISL85009EVAL1Z
Standard Package 1
Win Source Part Number 1038936-ISL85009EVAL1Z
Ultra Librarian 3D Model Ultra Librarian ISL85009EVAL1Z CAD Model

Description

The Renesas Electronics America ISL85009EVAL1Z is a development board that is designed to be used in electronic devices that require a reliable DC/DC step-down regulator.

  • Voltage Output: 1.8V
  • Current Output: 9A
  • Input Voltage Range: 4.5V to 18V
  • Switching Frequency: 600kHz
  • Compliant With: REACH
  • ECCN: EAR99
