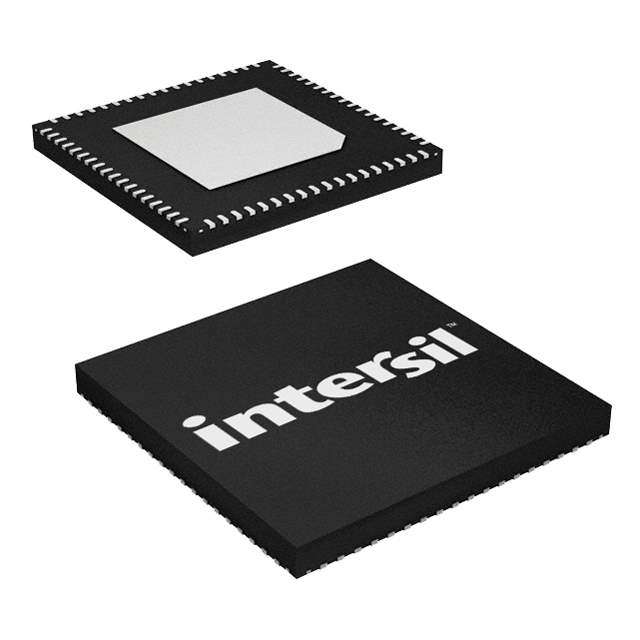

The ISL55100BIRZ is a high-performance, single-channel cable equalizer designed by Renesas Electronics. This device compensates for signal degradation caused by long cables in high-speed data transmission systems. It is commonly used in applications where signal integrity is crucial, such as video transmission and data communications.

Applications

• Video transmission systems
• Data communication links
• Security and surveillance equipment
• Broadcast equipment
• Medical imaging systems

Features

• Single-channel cable equalizer
• Adaptive equalization
• Low power consumption
• Adjustable gain
• RoHS compliant

Benefits

• Improves signal quality and extends transmission distance.
• Compensates for cable losses and reduces jitter.
• Minimizes power consumption for energy-efficient systems.
• Optimizes signal performance with adjustable gain.
• Complies with environmental regulations.

Additional Details

The ISL55100BIRZ features adaptive equalization, which automatically adjusts the equalization settings to compensate for varying cable lengths and signal conditions. This ensures optimal signal quality over a wide range of operating conditions. The device also offers adjustable gain, allowing users to fine-tune the signal amplitude. Its low power consumption makes it suitable for battery-powered applications and other energy-sensitive systems. This cable equalizer is widely used in video transmission systems to improve image quality and extend transmission distance. It is also used in data communication links to reduce bit error rates and ensure reliable data transfer. The ISL55100BIRZ is available in a small form factor package, making it easy to integrate into compact electronic devices. Its high performance and versatile features make it a popular choice for a variety of signal conditioning applications. This device supports data rates up to several Gbps, depending on the cable and application requirements.
