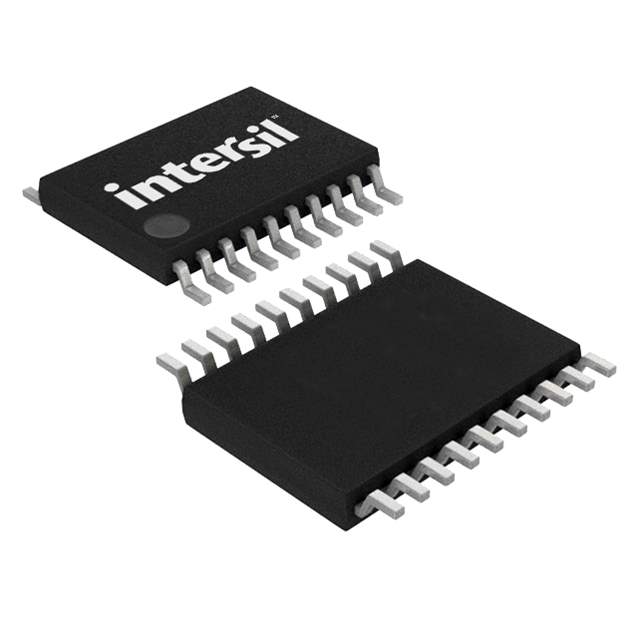

The ICL3232EIV-20T is a dual RS-232 transceiver from Renesas Electronics designed for serial communication in various electronic systems. It integrates charge pump circuitry, enabling it to operate from a single 3V to 5.5V power supply while meeting the RS-232 voltage level requirements. The "-20T" suffix specifies a particular configuration or packaging, often related to temperature range or tape-and-reel packaging for automated assembly. This transceiver is a reliable solution for applications requiring robust and efficient RS-232 connectivity.

Applications

• Industrial PCs: Provides RS-232 communication ports for industrial control.
• Embedded Systems: Enables serial communication in embedded applications.
• Instrumentation Equipment: Used in interfaces for test and measurement devices.
• Diagnostic Equipment: Facilitates data transfer in medical or automotive diagnostic tools.
• Networking Devices: Provides serial console ports for network configuration and monitoring.

Features

• Dual Transceiver: Contains two independent RS-232 transmitter/receiver pairs.
• Single 3V to 5.5V Power Supply: Simplifies power supply requirements.
• Integrated Charge Pump: Generates RS-232 voltage levels internally.
• Meets EIA/TIA-232 Specifications: Compliant with industry standards for RS-232 communication.
• Data Rates up to 400kbps: Supports high-speed serial communication.
• Low Power Consumption: Suitable for battery-powered applications.
• Enhanced ESD Protection: Provides robustness against electrostatic discharge events.

Benefits

• Simplified Design: Reduces external component count and board space requirements.
• Reliable Communication: Ensures robust and error-free data transfer.
• Wide Compatibility: Interfaces seamlessly with standard RS-232 devices.
• Energy Efficient: Extends battery life in portable or low-power systems.
• Robust Performance: Withstands harsh operating conditions, enhancing system reliability.

The ICL3232EIV-20T is a highly integrated and reliable RS-232 transceiver suitable for a wide range of applications. Its dual channel capability, integrated charge pump, and robust protection features make it an excellent choice for demanding environments.
