DF36037FZV Renesas Electronics America
Same model may have multiple batches, images only for reference.

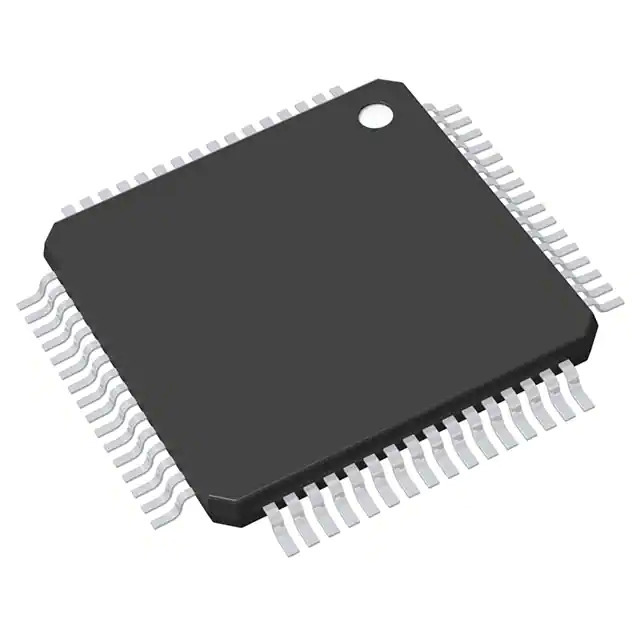

DF36037FZV

Part No DF36037FZV
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 56KB FLASH 64LFQFP / H8/300H H8® H8/300H Tiny Microcontroller IC 16-Bit 20MHz 56KB (56K x 8) FLASH 64-LFQFP (10x10)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Renesas Electronics America Inc
Series H8® H8/300H Tiny
Package Tray
Product Status Obsolete
Core Processor H8/300H
Core Size 16-Bit
Speed 20MHz
Connectivity CANbus, SCI, SSU
Peripherals PWM, WDT
Number of I/O 45
Program Memory Size 56KB (56K x 8)
Program Memory Type FLASH
EEPROM Size -
RAM Size 3K x 8
Voltage - Supply (Vcc/Vdd) 3V ~ 5.5V
Data Converters A/D 8x10b
Oscillator Type Internal
Temperature Range - Operating -20°C ~ 75°C (TA)
Mounting Type Surface Mount
Package / Case 64-LQFP
Supplier Device Package 64-LFQFP (10x10)
Base Product Number DF36037
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 1354240-DF36037FZV
Ultra Librarian 3D Model Ultra Librarian DF36037FZV CAD Model

Description

The Renesas Electronics America Inc 1354240-DF36037FZV is an embedded microcontroller from the H8® H8/300H Tiny series.

  • Temperature Range: -20°C to 75°C
  • Package: 64-LQFP
  • Mounting Type: Surface Mount
  • Speed: 20MHz
  • I/O Pins: 45
  • Core Processor: 16-bit
  • Interfaces: CANbus, SCI, SSU
  • Program Memory Size: 56KB
  • Memory Type: Flash
  • Features: A/D converters, PWM, WDT
