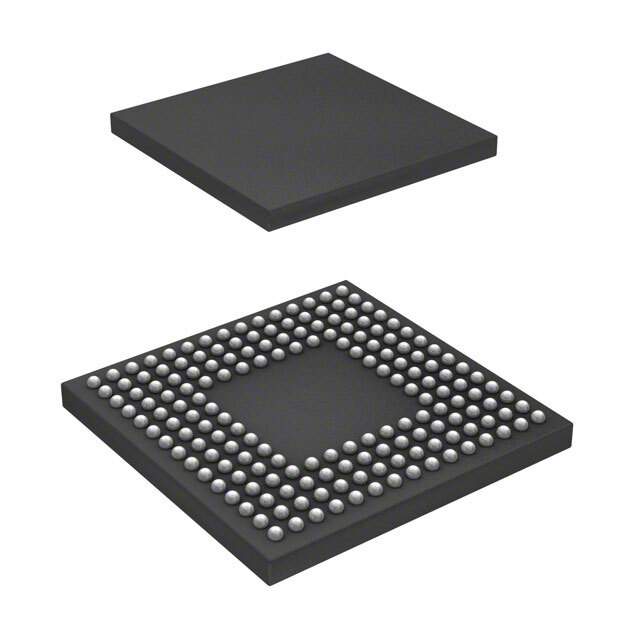

DF2506BR26DV Real Image
Same model may have multiple batches, images only for reference.

DF2506BR26DV

Part No DF2506BR26DV
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 512KB FLSH 176LFBGA / H8S/2000 series Microcontroller IC 16-Bit 26MHz 512KB (512K x 8) FLASH 176-LFBGA (13x13)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Renesas Electronics America Inc
Series H8® H8S/2500
Package Tray
Core Processor H8S/2000
Core Size 16-Bit
Speed 26MHz
Connectivity I2C, SCI
Peripherals POR, PWM, WDT
Number of I/O 104
Program Memory Size 512KB (512K x 8)
Program Memory Type FLASH
RAM Size 32K x 8
Supply Voltage - Operating 3V ~ 5.5V
Data Converters A/D 16x10b; D/A 2x8b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 176-LFBGA
Supplier Device Package 176-LFBGA (13x13)
Base Product Number DF2506
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Standard Package 1
Win Source Part Number 1069372-DF2506BR26DV
Ultra Librarian 3D Model Ultra Librarian DF2506BR26DV CAD Model

Description

The Renesas H8S/2500 microcontroller is a 16-bit core processor that operates at a speed of 26MHz.

  • Program Memory Size: 512KB (512K x 8)
  • Program Memory Type: FLASH
  • RAM Size: 32K x 8
  • Data Converters: A/D 16x10b and D/A 2x8b
  • Connectivity: I2C and SCI
  • Peripherals: POR, PWM, and WDT
  • I/O: 104
  • Internal Oscillator Type: internal
  • Package: 176-LFBGA
  • Mounting Technology: SMD (SMT)
  • Temperature Range: -40°C to 85°C (TA)
  • Supply Voltage: 3V to 5.5V
