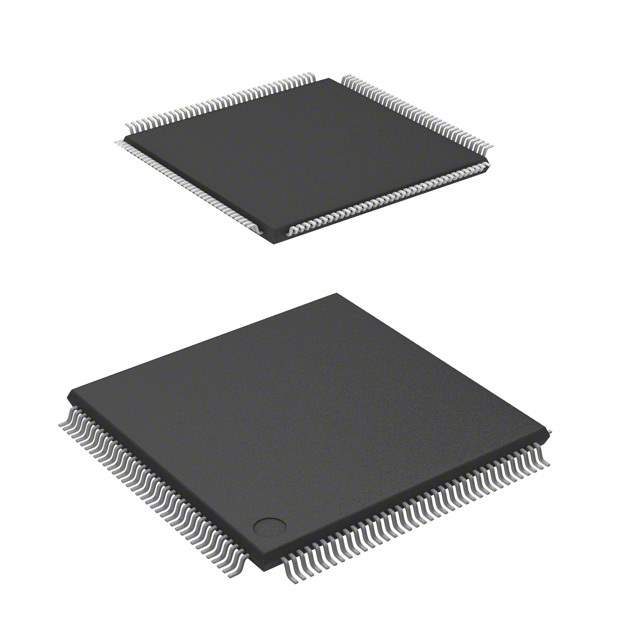

DF2117RVPT20HV Real Image
Same model may have multiple batches, images only for reference.

DF2117RVPT20HV

Part No DF2117RVPT20HV
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 160KB FLASH 144TQFP / H8S/2600 series Microcontroller IC 16-Bit 20MHz 160KB (160K x 8) FLASH 144-TQFP (16x16)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Renesas Electronics America Inc
Series H8® H8S/2100
Package Tray
Core Processor H8S/2600
Core Size 16-Bit
Speed 20MHz
Connectivity FIFO, I2C, LPC, SCI, SmartCard
Peripherals POR, PWM, WDT
Number of I/O 112
Program Memory Size 160KB (160K x 8)
Program Memory Type FLASH
RAM Size 8K x 8
Supply Voltage - Operating 3V ~ 3.6V
Data Converters A/D 16x10b
Oscillator Type External
Temperature Range - Operating -20°C ~ 75°C (TA)
Mounting SMD (SMT)
Package / Case 144-TQFP
Supplier Device Package 144-TQFP (16x16)
Base Product Number DF2117
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Standard Package 1
Win Source Part Number 996108-DF2117RVPT20HV
Ultra Librarian 3D Model Ultra Librarian DF2117RVPT20HV CAD Model

Description

The Renesas Electronics America DF2117RVPT20HV microcontroller is an embedded component that offers 160 kB FLASH memory, 8 kB RAM, and FIFO, I2C, LPC, SCI, and SmartCard interfaces.

  • Flash Memory: 160 kB
  • RAM: 8 kB
  • Interfaces: FIFO, I2C, LPC, SCI, and SmartCard
  • Speed: 20MHz
  • Core Size: 16-bit
  • Case/Package: 144-TQFP
  • Peripherals: POR, PWM, and WDT
  • Operating Temperature: -20°C to 75°C
  • Supply and Demand Status: Short
