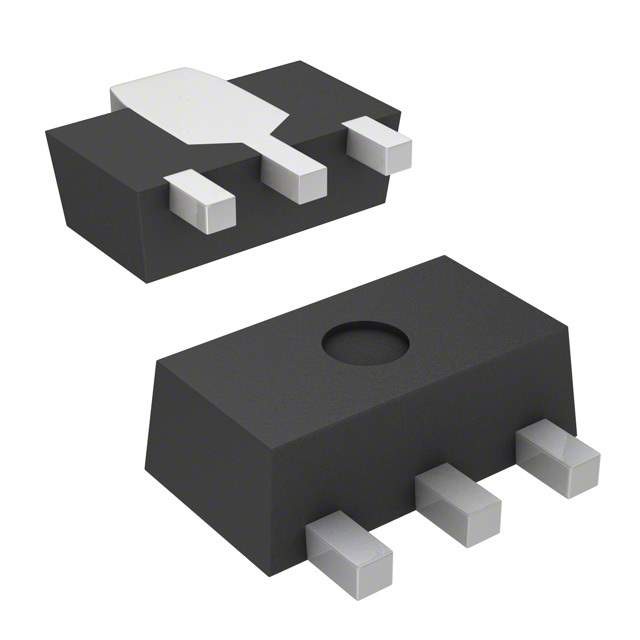

The CR05AS-8-BT14 is an SCR (Silicon Controlled Rectifier) manufactured by Renesas Electronics America. SCRs are unidirectional semiconductor switches used in high-power applications for controlling AC current. They are similar to thyristors, but specifically designed for applications where precise control over the switching point is required. This SCR is well-suited for uses in motor control, power rectification, and solid-state relays.

Applications

• Motor Speed Control
• AC Power Switching
• Light Dimming Circuits
• Solid State Relays (SSR)
• Voltage Regulation

Features

• High Voltage Rating: Designed to handle significant AC voltage levels.
• High Current Capability: Capable of switching substantial AC currents.
• Low Gate Trigger Current: Requires a small current to initiate conduction.
• High Surge Current Capability: Can withstand transient current spikes without damage.
• Unidirectional Conduction: Conducts current in only one direction.

Benefits

• Efficient Power Control: Provides efficient switching and control of AC power.
• Solid State Reliability: Offers improved reliability compared to mechanical relays or switches.
• Long Lifespan: Solid-state design results in a longer operational life.
• Precise Control: Allows for precise control over the switching of AC power.
• Compact Size: Can be integrated into various electronic devices and systems.

Additional Details

The CR05AS-8-BT14's key electrical characteristics, such as voltage and current ratings, gate trigger current, and holding current, are critical for selecting the appropriate SCR for a specific application. These can be found in the Renesas datasheet. Once triggered by a gate current, the SCR remains in the on-state until the current falls below the holding current. A heat sink is usually required for applications where the SCR switches high currents, in order to manage heat dissipation. Proper design of the gate drive circuit is essential for reliable triggering. The snubber circuit should be appropriately designed to protect against voltage transients and ensure the SCR turns off reliably. This SCR is commonly used in applications where a solid-state switch is needed for AC power control and precise switching is essential.
