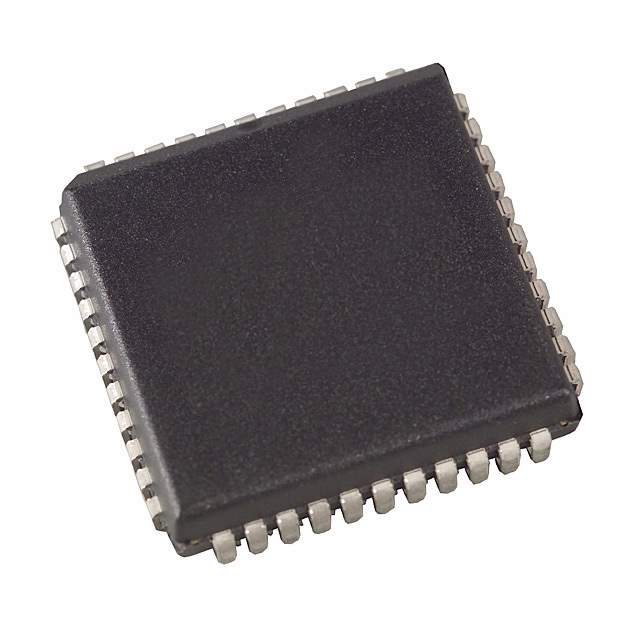

The CD22M3494SQZ is a high-performance analog switch/multiplexer manufactured by Renesas Electronics America. This device is designed to route analog signals from multiple inputs to a single output, or vice versa. It offers excellent signal integrity and low distortion, making it suitable for a wide range of analog signal processing applications.

Applications

• Audio and Video Switching
• Data Acquisition Systems
• Test and Measurement Equipment
• Industrial Control Systems
• Medical Instrumentation
• Communication Systems

Features

• Low On-Resistance
• Low Capacitance
• Wide Bandwidth
• Low Distortion
• High Off-Isolation
• Single Supply Operation
• TTL/CMOS Compatible Control Inputs

Benefits

• Maintains signal integrity with low on-resistance and capacitance.
• Enables accurate signal routing with minimal distortion.
• Provides high off-isolation to minimize crosstalk between channels.
• Simplifies system design with single-supply operation.
• Compatible with TTL/CMOS logic for easy interfacing with digital controllers.
• Versatile solution for a wide range of analog switching applications.
• Offers reliable performance in demanding environments.

Technical Specifications

The CD22M3494SQZ typically operates from a single supply voltage of 3V to 5.5V. It features low on-resistance and capacitance to minimize signal degradation. Consult the Renesas datasheet for complete specifications, including bandwidth, distortion, and isolation characteristics.
