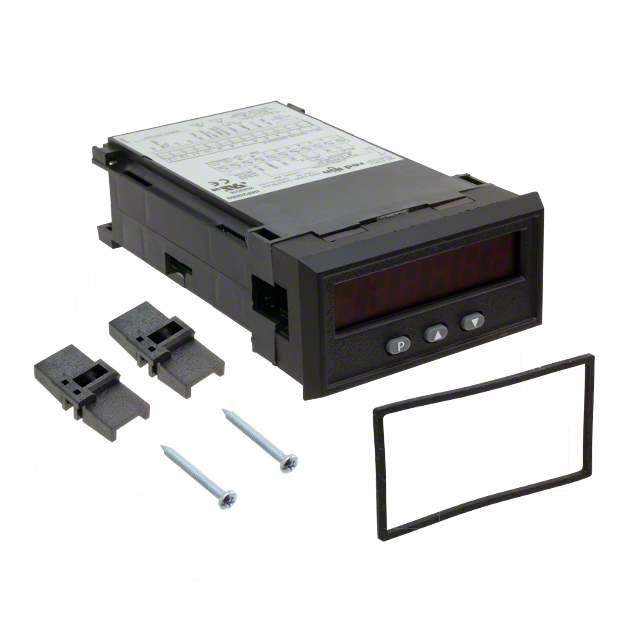

IMD20160 Real Image
Same model may have multiple batches, images only for reference.

IMD20160

Part No IMD20160
Manufacturer Red Lion Controls
Catalog Panel Meters
Description AMMETER 2A LED PANEL MOUNT  /  Current (Ammeter) LED - Red Characters Display Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls>Panel Meters
Mfr Red Lion Controls
Series Apollo
Package Box
Type Current (Ammeter)
Measuring Range ±2A
Display Type LED - Red Characters
Number Of Characters Per Row 6
Display Characters - Height 0.560" (14.20mm)
Voltage - Supply 115VAC, 230VAC
Panel Cutout Dimensions Rectangular - 92.00mm x 45.00mm
Mounting Type Panel Mount
Termination Style Screw Terminal
Ingress Protection IP65 - Dust Tight, Water Resistant
Features Excitation Supply
Temperature Range - Operating 0°C ~ 50°C
Weight 1.2 lbs (544.3 g)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9029.10.8000
Standard Package 1
Win Source Part Number 1114711-IMD20160
Ultra Librarian 3D Model Ultra Librarian IMD20160 CAD Model

Description

The Red Lion Controls Apollo series IMD20160 is a current (ammeter) panel meter.

  • Measuring Range: ±2A
  • Display Type: LED
  • Display Color: Red
  • Panel Cutout Dimensions: 92.00mm x 45.00mm
  • Display Characters Height: 0.560" (14.20mm)
  • Termination Style: Screw Terminal
  • Ingress Protection: IP65
  • Weight: 1.2 lbs (544.3 g)
  • Voltage Supply: 115VAC or 230VAC
