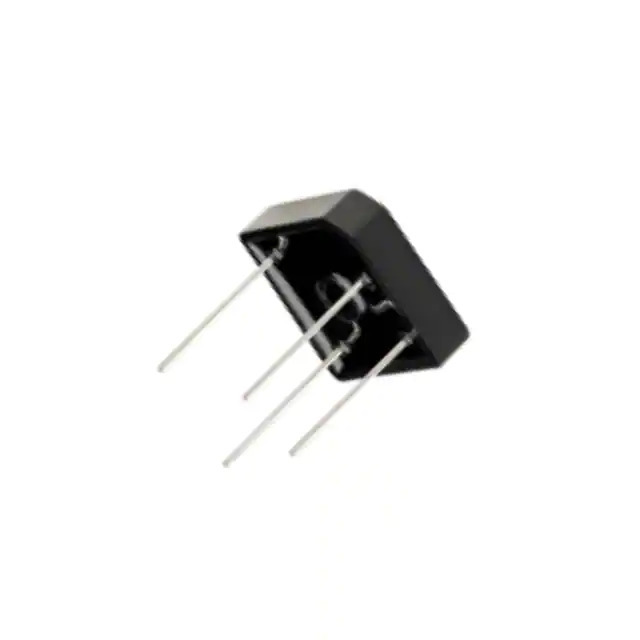

KBL402 Rectron USA
Same model may have multiple batches, images only for reference.

KBL402

Part No KBL402
Manufacturer Rectron USA
Catalog Bridge Rectifiers
Description BRIDGE RECT GLASS 100V 4A KBL
Datasheet
KBL402 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Rectron USA
Series -
Package Tube
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 100 V
Current - Average Rectified (Io) 4 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 4 A
Current - Reverse Leakage @ Vr 10 µA @ 100 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, KBL
Supplier Device Package KBL
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1367989-KBL402
Ultra Librarian 3D Model Ultra Librarian KBL402 CAD Model

Description

The KBL402 is a bridge rectifier diode from Rectron USA. Rectron USA

  • Operating Temperature: -55°C to 150°C
  • Current Rating: 4A
  • Forward Voltage Drop: 1.1V @ 4A
  • Reverse Leakage Current: 10µA @ 100V
  • Phase: Single Phase
  • Peak Reverse Voltage: 100V
  • Package: 4-SIP
  • Mounting: Through-Hole
