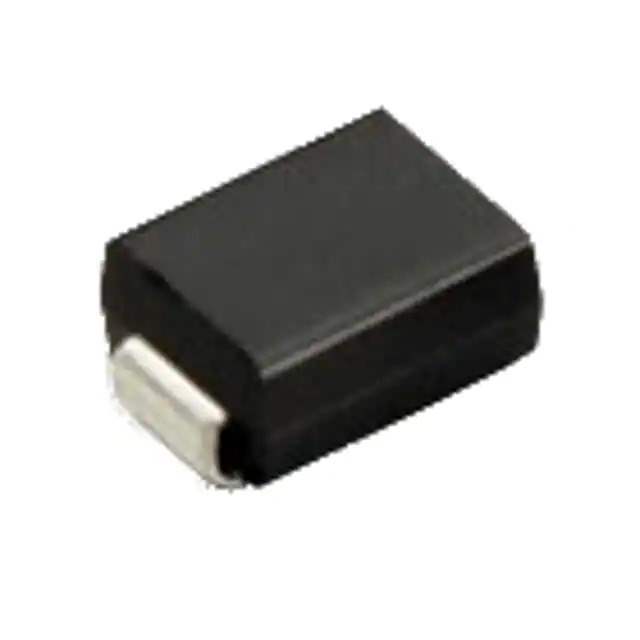

FFM201-W Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Rectron USA
Package Tape & Reel
Product Status Active
Technology Standard
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 1.3 V @ 2 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 150 ns
Current - Reverse Leakage @ Vr 2 µA @ 50 V
Capacitance @ Vr, F 50pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package DO-214AA (SMB)
Operating Temperature - Junction -55°C ~ 150°C
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 919165-FFM201-W
Ultra Librarian 3D Model Ultra Librarian FFM201-W CAD Model

Description

The FFM201-W is a single diode rectifier belonging to the category of discrete semiconductor products.

  • Manufacturer: Rectron USA
  • Speed: fast recovery
  • Recovery Time: less than 500ns
  • Current Rating: over 200mA
  • Package: tape and reel
  • Standard Package Quantity: 3,000 pieces
  • Technology: standard
  • Average Rectified Current: 2A
  • Forward Voltage: 1.3V @ 2A
  • Reverse Recovery Time: 150ns
  • Reverse Leakage Current: 2μA @ 50V
  • Capacitance: 50pF @ 4V and 1MHz
  • Operating Temperature: -55°C to 150°C
  • Mounting: surface mount
  • Package Type: DO-214AA SMB
  • ECCN: EAR99
  • Counterfeit Risk: 48%
  • MSL Level: 1 (unlimited)
  • HTSUS Code: 8541.10.0080
  • Product Status: active
